Features:

* Enhanced N channel FET with no inherent diode to Vcc
* Low propagation delay
* TTL-compatible input and output levels
* Undershoot clamp diodes on all switch and control inputs
* Available in SSOP and TSSOP packages


Application

* Resource sharing
* Crossbar switching
* Hot-docking
* Voltage translation (5V to 3.3V)


Pinout

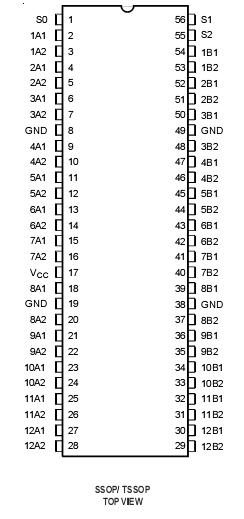

Connection Diagram


Specifications

Symbol Description Max Unit
VTERM(2) Supply Voltage to Ground 0.5 to +7 V
VTERM(3) DC Switch Voltage VS 0.5 to +7 V
VTERM(3) DC Input Voltage VIN 0.5 to +7 V
VAC AC Input Voltage (pulse width 20ns) 3 V
IOUT   120 mA
PMAX Maximum Power
Dissipation (TA = 85)		 SSOP 0.93 W
TSSOP 0.77
TSTG Storage Temperature 65 to +150



Description

  The QS316212 provides a set of 24 high-speed CMOS TTL-compatible bus-exchange switches.  The low ON resistance of the QS316212 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise.  The device operates as a 24-bit bus switch or a 12-bit bus exchanger, which provides data exchanging between the four signal ports through the data-select (S0-S2) terminals.
  The QS316212 is characterized for operation at -40°C to +85°C.
