IDTQS316233

Features:

• Enhanced N channel FET with no inherent diode to V_cc
• 5Ω bidirectional switches connect inputs to outputs
• Zero propagation delay, zero ground bounce
• TTL-compatible input and output levels
• Undershoot clamp diodes on all switch and control inputs
• Available in SSOP and TSSOP packages


Application

• Video, audio, graphics switching, muxing
• Hot-swapping, hot-docking
• Voltage translation (5V to 3.3V)
• Bus funneling

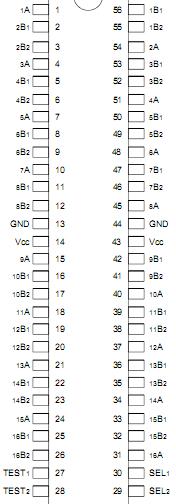

Pinout




Specifications

Symbol	Description		Max	Unit
VTERM(2)	Supply Voltage to Ground		0.5 to +7	V
VTERM(3)	DC Switch Voltage VS		0.5 to +7	V
VTERM(3)	DC Input Voltage VIN		0.5 to +7	V
VAC	AC Input Voltage (pulse width 20ns)		0.5 to +7	V
IOUT	DC Output Current		120	mA
PMAX	Maximum Power Dissipation (TA = 85°C)	SSOP	0.93	W
		TSSOP	0.77
TSTG	Storage Temperature		65 to +150

Description

    The QS316233 is a 32-bit to 16-bit high-speed CMOS, TTL-compatible switch which can multiplex or demultiplex data. IDTQS316233 can be used for memory interleaving where two memory banks need to be addressed simultaneously.  IDTQS316233  can also be used as two 16-bit to 8-bit multiplexers or as one 32-bit to 16-bit multiplexer.  SELn inputs control the data flow.  TESTn inputs control either one or two ports connection.

    Mux/Demux devices IDTQS316233 provide an order of magnitude faster speed than equivalent logic devices.

    The QS316233 is characterized for operation at -40°C to +85°C.
