IDTQS32384

Features: * Enhanced N channel FET with no inherent diode to Vcc*5 bidirectional switches connect inputs to outputs* Zero ground bounce*25 resistors for low noise* Undershoot clamp diodes on all switch and control inputs* Two enables control five bits each* Available in QSOP and SOIC packagesAppli...

product image

IDTQS32384 Picture
See larger image
SeekIC No. : 004373414 Detail

IDTQS32384: Features: * Enhanced N channel FET with no inherent diode to Vcc*5 bidirectional switches connect inputs to outputs* Zero ground bounce*25 resistors for low noise* Undershoot clamp diodes on all swi...

IDTQS32384 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS32384
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Enhanced N channel FET with no inherent diode to Vcc
*5 bidirectional switches connect inputs to outputs
* Zero ground bounce
*25 resistors for low noise
* Undershoot clamp diodes on all switch and control inputs
* Two enables control five bits each
* Available in QSOP and SOIC packages


Application

* Hot-swapping, hot-docking
* Voltage translation (5V to 3.3V)
* Power conservation
* Capacitance reduction and isolation
* Clock gating
* Bus isolation


Pinout

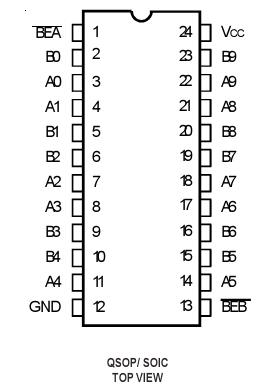

Connection Diagram


Specifications

Symbol Description Max Unit
VTERM(2) Supply Voltage to Ground 0.5 to +7 V
VTERM(3) DC Switch Voltage Vs 0.5 to +7 V
VTERM(3) DC Input Voltage VIN 0.5 to +7 V
VAC AC Input Voltage (pulse width 20ns) 3 V
IOUT DC Output Current 120 mA
PMAX Maximum Power Dissipation (TA = 85) 0.5 W
TSTG Storage Temperature 65 to +150



Description

  The QS32384 provides a set of ten high-speed CMOS, TTL-compatible bus switches.  Two banks of five switches are controlled by independent Bus Enable (BE) signals.  The QS32384 adds an internal series resistor with each switch to reduce reflection noise in high speed applications. When closed, the switch acts as the source (series) termination for the driver connected to it.

  The QS32384 is characterized for operation at -40°C to +85°C.
