Part Number: IDTQS32390
Description: The QS32390 provides a 16:8 multiplexer logic switch. The QS32390 hasan internal 25
- Table of contents:
IDTQS32390
-
Suppliers
DataSheet
General Description
IDTQS32390 General Description
The QS32390 provides a 16:8 multiplexer logic switch. The QS32390 has an internal 25 resistor to reduce reflection noise in high-speed applica-tions. The enable inputs connect one of two inputs to the common I/O pin,respectively. The multiplexer function can be used to select and route logic signals for zero delay, isolate bus capacitance, form crossbar switches, etc.
Mux/Demux devices provide an order of magnitude faster speed than equivalent logic devices.
The QS32390 is characterized for operation at -40 to +85.
IDTQS32390 Maximum Ratings
| Symbol | Description | Max | Unit |
| VTERM(2) | Supply Voltage to Ground | 0.5 to +7 | V |
| VTERM(3) | DC Switch Voltage VS | 0.5 to +7 | V |
| VTERM(3) | DC Input Voltage VIN | 0.5 to +7 | V |
| VAC | AC Input Voltage (pulse width 20ns) | 3 | V |
| IOUT | DC Output Current | 120 | mA |
| PMAX | Maximum Power Dissipation (TA = 85°C) | 0.5 | W |
| TSTG | Storage Temperature | 65 to +150 | °C |
IDTQS32390 Features
* Enhanced N channel FET with no inherent diode to Vcc
* 16:8 multiplexer function with zero delay
*5 bidirectional switches connect inputs to outputs
* Zero propagation delay, zero ground bounce
* Undershoot clamp diodes on all switch and control inputs
* Direct bidirectional connection for mux, demux
*25 resistors for low noise
* Available in QSOP package
* 16:8 multiplexer function with zero delay
*5 bidirectional switches connect inputs to outputs
* Zero propagation delay, zero ground bounce
* Undershoot clamp diodes on all switch and control inputs
* Direct bidirectional connection for mux, demux
*25 resistors for low noise
* Available in QSOP package
IDTQS32390 Typical Application
* Video, audio, graphics switching, muxing
* Hot-swapping, hot-docking
* Voltage translation (5V to 3.3V)
* Hot-swapping, hot-docking
* Voltage translation (5V to 3.3V)

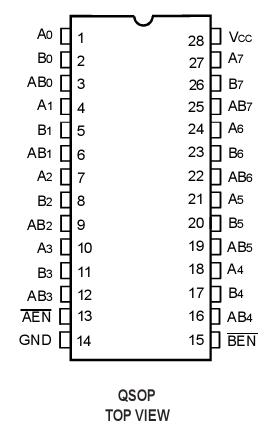

IDTQS32390 Connection Diagram
IDTQS32390
PDF/DataSheet Download
- Datasheet: IDTQS32390
- File Size: 46403 KB
- Manufacturer: IDT [Integrated Device Technology]
- Click here to Download
- ·IDT 79R3081
- IDT
- RISController?
- 914564 KB
- ·IDT 79R3081E
- IDT
- RISController?
- 914564 KB
- ·IDT 79RV3081
- IDT
- RISController?
- 914564 KB
- ·IDT 79RV3081E
- IDT
- RISController?
- 914564 KB
- ·IDT RC5000
- IDT
- MULTI-ISSUE 64-BIT MICROPROCESSOR
- 470729 KB
- ·IDT2305
- IDT [Integrated Device Technology]
- 3.3V ZERO DELAY CLOCK BUFFER
- 135648 KB
- ·IDT2305-1
- IDT [Integrated Device Technology]
- 3.3V ZERO DELAY CLOCK BUFFER
- 135648 KB
- ·IDT2305-1DC
- IDT [Integrated Device Technology]
- 3.3V ZERO DELAY CLOCK BUFFER
- 135648 KB
IDTQS32390 Relative Products
IDTQS32384
The QS32384 provides a set of ten high-speed CMOS, TTL-compatible bus switches. Two banks of five switches are controlled by independent Bus Enable (BE) signals. The QS32384 adds an internal series resistor with each switch to reduce reflection noise in hig...
IDTQS32257
The QS32257 is a high-speed CMOS LVTTL-compatible Quad 2:1 multiplexer/demultiplexer. The QS32257 is a function and pinout compatible QuickSwitch version of the 74F257, 74FCT257, and the 74ALS/AS/LS257 Quad 2:1 multiplexers. The QS32257 has 25 series resist...
IDTQS32253
The QS32253 is a high-speed CMOS TTL-compatible dual 4:1 multi-plexer/demultiplexer with 3-state outputs. The QS32253 is function and pinout compatible version of the 74F253, 74FCT253, and the 74ALS/AS/LS253 dual 4:1 multiplexers. The QS32253 has 25? resist...
IDTQS32245QG8
IC BUS QUICKSWITCH 8BIT 20-QSOP

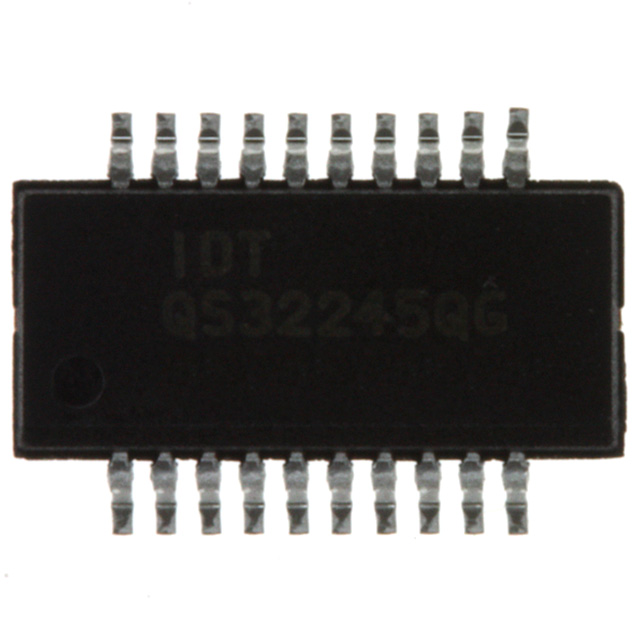

IDTQS32245QG
