Purchase IDTQS3245, In-stock IDTQS3245 From SeekIC.
D/C:07+
Part Number: IDTQS3245
D/C: 07+
Description: The QS3245 provides a set of eight high-speed CMOS TTL-compatible bus switches in a pinout comp...
- Table of contents:
IDTQS3245
-
Suppliers
DataSheet
General Description
IDTQS3245 General Description
The QS3245 provides a set of eight high-speed CMOS TTL-compatible bus switches in a pinout compatible with 74FCT245, 74F245, 74ALS/AS/LS245 8-bit transceivers. The low ON resistance of the QS3245 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The Output Enable (OE) signal turns the switches on similar to the OE signal of the 74'245.
QuickSwitch devices provide an order of magnitude faster speed than conventional logic devices.
The QS3245 is characterized for operation at -40 to +85.
IDTQS3245 Maximum Ratings
| Symbol | Description | Max | Unit |
| VTERM(2) | Supply Voltage to Ground | 0.5 to +7 | V |
| VTERM(3) | DC Switch Voltage Vs | 0.5 to +7 | V |
| VTERM(3) | DC Input Voltage VIN | 0.5 to +7 | V |
| VAC | AC Input Voltage (pulse width 20ns) | 3 | V |
| IOUT | DC Output Current | 120 | mA |
| PMAX | Maximum Power Dissipation (TA = 85) | 0.5 | W |
| TSTG | Storage Temperature | 65 to +150 |
IDTQS3245 Features
* Enhanced N channel FET with no inherent diode to Vcc
*5 bidirectional switches connect inputs to outputs
* Pin compatible with the 74F245, 74FCT245, and 74FCT245T
* Low power CMOS proprietary technology
* Zero propagation delay, zero ground bounce
* Undershoot clamp diodes on all switch and control inputs
* TTL-compatible control inputs
* Available in SOIC, QSOP, and TSSOP packages
*5 bidirectional switches connect inputs to outputs
* Pin compatible with the 74F245, 74FCT245, and 74FCT245T
* Low power CMOS proprietary technology
* Zero propagation delay, zero ground bounce
* Undershoot clamp diodes on all switch and control inputs
* TTL-compatible control inputs
* Available in SOIC, QSOP, and TSSOP packages
IDTQS3245 Typical Application
* Hot-swapping, hot-docking
* Voltage translation (5V to 3.3V)
* Power conservation
* Capacitance reduction and isolation
* Logic replacement (data processing)
* Clock gating
* Bus switching and isolation
* Voltage translation (5V to 3.3V)
* Power conservation
* Capacitance reduction and isolation
* Logic replacement (data processing)
* Clock gating
* Bus switching and isolation

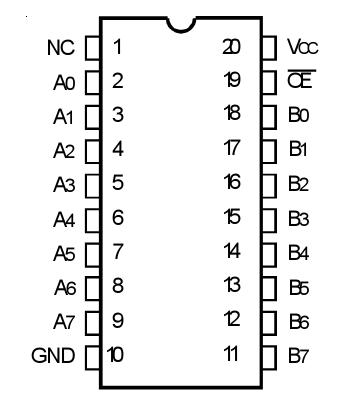

IDTQS3245 Connection Diagram
IDTQS3245
