Description: The QS3251 is a high-speed CMOS TTL-compatible 8:1 multiplexer/demultiplexer. The Q...
- Table of contents:
IDTQS3251
-
Suppliers
DataSheet
General Description
IDTQS3251 General Description
The QS3251 is a high-speed CMOS TTL-compatible 8:1 multiplexer/demultiplexer. The QS3251 has 3-state outputs. The QS3251 is a function and pinout compatible version of the 74F251, 74FCT251 and the 74ALS/AS/LS251 8:1 multiplexers. The low ON resistance of the QS3251 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise.
Mux/Demux devices provide an order of magnitude faster speed than equivalent logic devices.
The QS3251 is characterized for operation at -40°C to +85°C.
IDTQS3251 Maximum Ratings
| Symbol | Description | Max | Unit |
| VTERM(2) | SupplyVoltage to Ground | 0.5 to +7 | V |
| VTERM(3) | DC Switch Voltage VS | 0.5 to +7 | V |
| VTERM(3) | DC Input Voltage VIN | 0.5 to +7 | V |
| VAC | AC Input Voltage (pulse width 20ns) | 3 | V |
| IOUT | DC Output Current | 120 | mA |
| PMAX | Maximum Power Dissipation (TA = 85) | 0.5 | W |
| TSTG | Storage Temperature | 65 to +150 |
IDTQS3251 Features
* Enhanced N channel FET with no inherent diode to Vcc
*5 bidirectional switches connect inputs to outputs
* Pin compatible with the 74F251, 74FCT251, and 74FCT251T
* Zero propagation delay, zero ground bounce
* Undershoot clamp diodes on all switch and control inputs
* TTL-compatible control inputs
* Available in SOIC and QSOP packages
*5 bidirectional switches connect inputs to outputs
* Pin compatible with the 74F251, 74FCT251, and 74FCT251T
* Zero propagation delay, zero ground bounce
* Undershoot clamp diodes on all switch and control inputs
* TTL-compatible control inputs
* Available in SOIC and QSOP packages
IDTQS3251 Typical Application
* Logic replacement
* Video, audio, graphics switching, muxing
* Hot-swapping, hot-docking
* Voltage translation (5V to 3.3V)
* Video, audio, graphics switching, muxing
* Hot-swapping, hot-docking
* Voltage translation (5V to 3.3V)

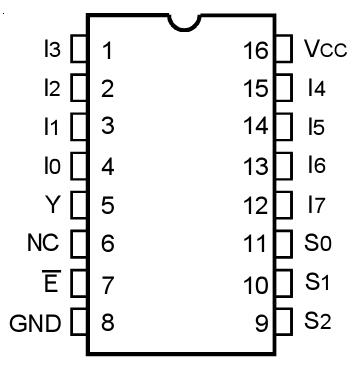

IDTQS3251 Connection Diagram
IDTQS3251
PDF/DataSheet Download
- Datasheet: IDTQS3251
- File Size: 47329 KB
- Manufacturer: IDT [Integrated Device Technology]
- Click here to Download
