Part Number: IDTQS32X2861
Description: The QS32X2861 provides two sets of ten high-speed CMOS TTLcompatible bus switches. The low ON resistan...
- Table of contents:
IDTQS32X2861
-
Suppliers
DataSheet
General Description
IDTQS32X2861 General Description
The QS32X2861 provides two sets of ten high-speed CMOS TTLcompatible bus switches. The low ON resistance of the QS32X2861 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The QS32x2861 adds an internal 25 series termination resistor to each switch to reduce reflection noise in high-speed applications. The Bus Enable (BEn) signals turn the switches on.
The QS32X2861 bus switch is ideal for switching digital buses, as well as for hotplug buffering and 5V to 3V conversion.
The QS32X2861 is characterized for operation at -40°C to +85°C.
IDTQS32X2861 Maximum Ratings
|
Symbol |
Description |
Max |
Unit |
|
VTERM(2) |
Supply Voltage to Ground |
0.5 to +7 |
V |
|
VTERM(3) |
DC Switch Voltage VS |
0.5 to +7 |
V |
|
VTERM(3) |
DC Input Voltage VIN |
0.5 to +7 |
V |
|
VAC |
AC Input Voltage (pulse width 20ns) |
3 |
V |
|
IOUT |
DC Output Current |
120 |
mA |
|
PMAX |
MaximumPower Dissipation (TA = 85°C) |
0.5 |
W |
|
TSTG |
Storage Temperature |
65 to +150 |
°C |
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. Vcc terminals.
3. All terminals except Vcc.
IDTQS32X2861 Features
• Enhanced N channel FET with no inherent diode to Vcc
• 25 series resistors for low noise
• Undershoot clamp diodes on all switch and control inputs
• Available in 48-pin QVSOP package
• 25 series resistors for low noise
• Undershoot clamp diodes on all switch and control inputs
• Available in 48-pin QVSOP package
IDTQS32X2861 Typical Application
• Hot-swapping, hot-docking
• Voltage translation (5V to 3.3V)
• Power conservation
• Capacitance reduction and isolation
• Bus isolation
• Clock gating
• Voltage translation (5V to 3.3V)
• Power conservation
• Capacitance reduction and isolation
• Bus isolation
• Clock gating

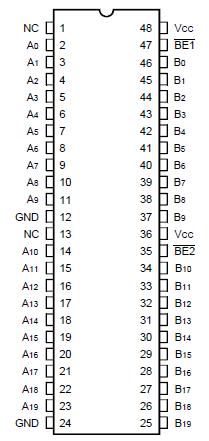

IDTQS32X2861 Connection Diagram
IDTQS32X2861
PDF/DataSheet Download
- Datasheet: IDTQS32X2861
- File Size: 43277 KB
- Manufacturer: IDT
- Click here to Download
- ·IDT 79R3081
- IDT
- RISController?
- 914564 KB
- ·IDT 79R3081E
- IDT
- RISController?
- 914564 KB
- ·IDT 79RV3081
- IDT
- RISController?
- 914564 KB
- ·IDT 79RV3081E
- IDT
- RISController?
- 914564 KB
- ·IDT RC5000
- IDT
- MULTI-ISSUE 64-BIT MICROPROCESSOR
- 470729 KB
- ·IDT2305
- IDT [Integrated Device Technology]
- 3.3V ZERO DELAY CLOCK BUFFER
- 135648 KB
- ·IDT2305-1
- IDT [Integrated Device Technology]
- 3.3V ZERO DELAY CLOCK BUFFER
- 135648 KB
- ·IDT2305-1DC
- IDT [Integrated Device Technology]
- 3.3V ZERO DELAY CLOCK BUFFER
- 135648 KB
IDTQS32X2861 Relative Products
IDTQS32X245Q2G8
IC QUICKSWITCH DUAL BUS 40-QVSOP

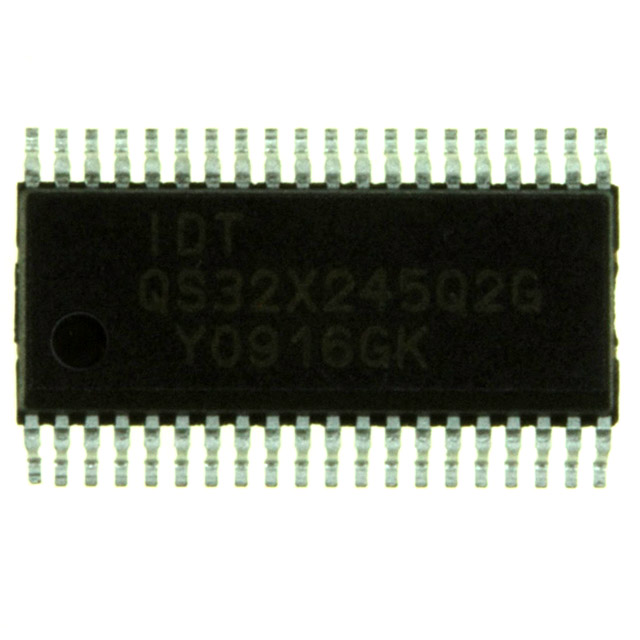

IDTQS32X245Q2G
