IDTQS32X383

Features: • Enhanced N channel FET with no inherent diode to Vcc• 5 bidirectional switches connect inputs to outputs• Zero propagation delay, zero ground bounce• Undershoot clamp diodes on all switch and control inputs• 20-bit double-width format• Bus exchange a...

product image

IDTQS32X383 Picture
See larger image
SeekIC No. : 004373426 Detail

IDTQS32X383: Features: • Enhanced N channel FET with no inherent diode to Vcc• 5 bidirectional switches connect inputs to outputs• Zero propagation delay, zero ground bounce• Undershoot c...

IDTQS32X383 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS32X383
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Enhanced N channel FET with no inherent diode to Vcc
• 5 bidirectional switches connect inputs to outputs
• Zero propagation delay, zero ground bounce
• Undershoot clamp diodes on all switch and control inputs
• 20-bit double-width format
• Bus exchange allows nibble swap
• Zero ground bounce in flow-through mode
• TTL-compatible control inputs
• Available in 48-pin QVSOP package


Application

• Crossbar switching
• Resource sharing
• Hot-docking
• Voltage translation (5V to 3.3V)


Pinout

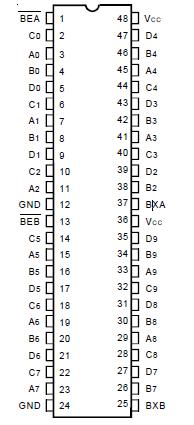

Connection Diagram


Specifications

Symbol
Description
Max
Unit
VTERM(2)
Supply Voltage to Ground
0.5 to +7
V
VTERM(3)
DC Switch Voltage VS
0.5 to +7
V
VTERM(3)
DC Input Voltage VIN
0.5 to +7
V
VAC
AC Input Voltage (pulse width 20ns)
3
V
IOUT
DC Output Current
120
mA
PMAX
MaximumPower Dissipation (TA = 85°C)
0.5
W
TSTG
Storage Temperature
65 to +150
°C
NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. Vcc terminals.
3. All terminals except Vcc.


Description

The QS32X383 provides two sets of ten high-speed CMOS TTLcompatible bus switches. The low ON resistance (5) of the QS32X383 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The Bus Enable (BE) signal turns the switches on. The Bus Exchange (BX) signal provides nibble swap of the AB and CD pairs of signals. This exchange configuration allows byte swapping of buses in systems. It can also be used as a 10-wide 2-to-1 multiplexer and to create low delay barrel shifters, etc.

The QS32X383 is characterized for operation at -40°C to +85°C.
