IDTQS32X384
-
Suppliers
DataSheet
General Description
IDTQS32X384 General Description
The QS32X384 provides a set of twenty high-speed CMOS TTL-compatible bus switches. The low ON resistance of the QS32X384 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The Bus Enable (BE) signals turn the switches on. Four Bus Enable signals are provided, one for each of five bits of the 20-bit bus. The '384 family of QuickSwitch products is ideal for switching wide digital buses, as well as hotplug buffering, and 5V to 3V conversion.
The QS32X384 is characterized for operation at -40°C to +85°C.
IDTQS32X384 Maximum Ratings
| Symbol | Description | Max | Unit |
| VTERM(2) | Supply Voltage to Ground | 0.5 to +7 | V |
| VTERM(3) | DC Switch Voltage VS | 0.5 to +7 | V |
| VTERM(3) | DC Input Voltage VIN | 0.5 to +7 | V |
| VAC | AC Input Voltage (pulse width 20ns) | 3 | V |
| IOUT | DC Output Current | 120 | mA |
| PMAX | Maximum Power Dissipation (TA = 85°C) | 0.5 | W |
| TSTG | Storage Temperature | 65 to +150 |
IDTQS32X384 Features
* Enhanced N channel FET with no inherent diode to VCC
*5 bidirectional switches connect inputs to outputs
* Zero propagation delay
* Zero ground bounce
* Undershoot clamp diodes on all switch and control pins
* Four enables control five bits each
* TTL-compatible input and output levels
* Available in 48-pin QVSOP package
*5 bidirectional switches connect inputs to outputs
* Zero propagation delay
* Zero ground bounce
* Undershoot clamp diodes on all switch and control pins
* Four enables control five bits each
* TTL-compatible input and output levels
* Available in 48-pin QVSOP package
IDTQS32X384 Typical Application
* Hot-swapping, hot-docking
* Voltage translation (5V to 3.3V)
* Power conservation
* Capacitance reduction and isolation
* Bus isolation
* Clock gating
* Voltage translation (5V to 3.3V)
* Power conservation
* Capacitance reduction and isolation
* Bus isolation
* Clock gating

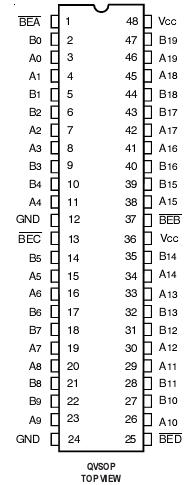

IDTQS32X384 Connection Diagram
IDTQS32X384
