Part Number: IDTQS32X861









Description: The QS32X861 provides two sets of ten high-speed CMOS TTLcompatiblebus switches. The low ON resistance...


Urgent Purchase

IDTQS32X861 General Description


The QS32X861 provides two sets of ten high-speed CMOS TTLcompatiblebus switches. The low ON resistance of the QS32X861 allowsinputs to be connected to outputs without adding propagation delay andwithout generating additional ground bounce noise. The Bus Enable ( BEn )signals turn the switches on.

The QS32X861 bus switch is ideal for switching digital buses, as well asfor hotplug buffering and 5V to 3V conversion.

The QS32X861 is characterized for operation at -40to +85.

IDTQS32X861 Maximum Ratings

Symbol
Description
Max
Unit
VTERM(2)
Supply Voltage to Ground
0.5 to +7
V
VTERM(3)
DC Switch Voltage Vs
0.5 to +7
V
VTERM(3)
DC Input Voltage VIN
0.5 to +7
V
VAC
AC Input Voltage (pulse width 20ns)
3
V
IOUT
DC Output Current
120
mA
PMAX
Maximum Power Dissipation(TA = 85)
0.5
W
TSTG
Storage Temperature
65 to +150

IDTQS32X861 Features

• Enhanced N channel FET with no inherent diode to Vcc
• 5Ω bidirectional switches connect inputs to outputs
• Zero propagation delay, zero ground bounce
• Undershoot clamp diodes on all switch and control inputs
• Available in 48-pin QVSOP package

IDTQS32X861 Typical Application

• Hot-swapping, hot-docking
• Voltage translation (5V to 3.3V)
• Power conservation
• Capacitance reduction and isolation
• Bus isolation
• Clock gating

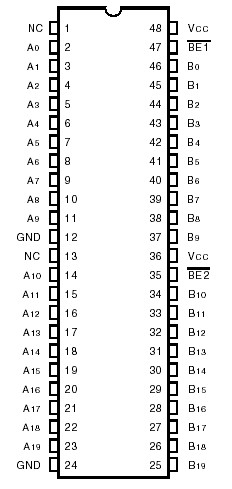

IDTQS32X861 Connection Diagram

IDTQS32X861 Connection Diagram

IDTQS32X861 datasheet

IDTQS32X861
PDF/DataSheet Download

  • Datasheet: IDTQS32X861
  • File Size: 68732 KB
  • Manufacturer: IDT [Integrated Device Technology]
  • Click here to Download
