Part Number: IDTQS32XL384
Description: The QS32XL384 provides a set of twenty high-speed CMOS TTL-compatible bus switches. The low ON ...
- Table of contents:
IDTQS32XL384
-
Suppliers
DataSheet
General Description
IDTQS32XL384 General Description
The QS32XL384 provides a set of twenty high-speed CMOS TTL-compatible bus switches. The low ON resistance of the QS32XL384 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The Bus Enable (BE) signals turn the switches on. Four Bus Enable signals are provided, one for each of five bits of the 20-bit bus. The '384 family of QuickSwitch products is ideal for switching wide digital buses, as well as hot-docking, 5V to 3V conversion and capacitance isolation for power conservation.
The QS32XL384 is characterized for operation at -40°C to +85°C.
IDTQS32XL384 Maximum Ratings
| Symbol | Description | Max | Unit |
| VTERM(3) | SupplyVoltage to Ground | 0.5 to +7 | V |
| VTERM(3) | DC Switch Voltage VS | 0.5 to +7 | V |
| VTERM(3) | DC Input Voltage VIN | 0.5 to +7 | V |
| VAC | AC Input Voltage (pulse width 20ns) | 3 | V |
| IOUT | DC Output Current | 120 | mA |
| PMAX | Maximum Power Dissipation (TA = 85 ) | 0.5 | W |
| TSTG | Storage Temperature | 65 to +150 |
IDTQS32XL384 Features
* Enhanced N channel FET with no inherent diode to VCC
*5 bidirectional switches connect inputs to outputs
* Zero propagation delay, zero ground bounce
* Undershoot Clamp Diodes on all switch and control Inputs
* Four enables control five bits each
* TTL-compatible input and output levels
* Available in 48-pin QVSOP package
*5 bidirectional switches connect inputs to outputs
* Zero propagation delay, zero ground bounce
* Undershoot Clamp Diodes on all switch and control Inputs
* Four enables control five bits each
* TTL-compatible input and output levels
* Available in 48-pin QVSOP package
IDTQS32XL384 Typical Application
* Hot-swapping, hot-docking
* Voltage translation (5V to 3.3V)
* Logic replacement (data processing)
* Power conservation
* Capacitance reduction and isolation
* Low power for hand held and mobile applications
* Bus isolation
* Clock gating
* Voltage translation (5V to 3.3V)
* Logic replacement (data processing)
* Power conservation
* Capacitance reduction and isolation
* Low power for hand held and mobile applications
* Bus isolation
* Clock gating

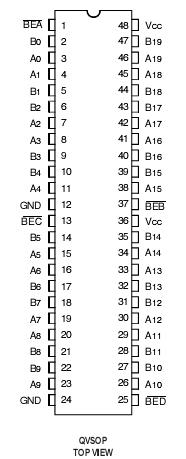

IDTQS32XL384 Connection Diagram
IDTQS32XL384
PDF/DataSheet Download
- Datasheet: IDTQS32XL384
- File Size: 64610 KB
- Manufacturer: IDT [Integrated Device Technology]
- Click here to Download
