General Description
IDTQS32XV245 General Description
The QS32XV245 is a 16-bit high speed bus switch controlled by LVTTLcompatible active low enable signal. When closed, the switches exhibit near zero propagation delay without generating additional ground bounce or switching noise.
The QS32XV245 is specially designed for direct interface between 3.3V and 2.5V devices without any external components. When operating from a 3.3V supply, the logic high level at the switch output is clamped to 2.5V when the switch input signal exceeds 2.5V. This device can be used for switching 2.5V buses without signal attenuation. The ON resistance at 3.3V VCC is less than 5 typical, providing near zero propagation delay through the switch. Absence of DC path from switch I/O pins to VCC or ground makes QS32XV245 an ideal device for hot swapping applications.
The QS32XV245 is characterized for operation from -40°C to +85°C.
IDTQS32XV245 Maximum Ratings
|
Symbol |
Description |
Max |
Unit |
|
VTERM(2) |
Supply Voltage to Ground |
0.5 to +7 |
V |
|
VTERM(3) |
DC Switch Voltage VS |
0.5 to +7 |
V |
|
VTERM(3) |
DC Input Voltage VIN |
0.5 to +7 |
V |
|
VAC |
AC Input Voltage (pulse width 20ns) |
3 |
V |
|
IOUT |
DC Output Current |
120 |
mA |
|
PMAX |
MaximumPower Dissipation (TA = 85°C) |
0.5 |
W |
|
TSTG |
Storage Temperature |
65 to +150 |
°C |
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. Vcc terminals.
3. All terminals except Vcc.
IDTQS32XV245 Features
• 5 bidirectional switches connect inputs to outputs
• Pin compatibility with QS3245
• 250ps propagation delay
• Undershoot clamp diodes on all switch and control inputs
• LVTTL-compatible control inputs
• Available in 40-pin QVSOP package
• Pin compatibility with QS3245
• 250ps propagation delay
• Undershoot clamp diodes on all switch and control inputs
• LVTTL-compatible control inputs
• Available in 40-pin QVSOP package
IDTQS32XV245 Typical Application
• 3.3V to 2.5V Voltage translation
• 2.5V to 1.8V Voltage translatio
• PCI bus isolation hot swap
• 2.5V to 1.8V Voltage translatio
• PCI bus isolation hot swap

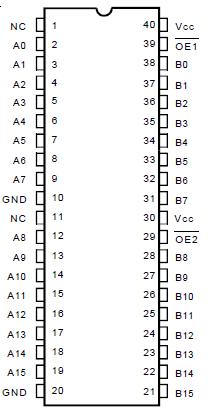

IDTQS32XV245 Connection Diagram
