Part Number: IDTQS32XVH2245
Description: The QS32XVH2245 HotSwitch is a high bandwidth, 16-bit bus switch. The QS32XVH2245, with 2...
- Table of contents:
IDTQS32XVH2245
-
Suppliers
DataSheet
General Description
IDTQS32XVH2245 General Description
The QS32XVH2245 HotSwitch is a high bandwidth, 16-bit bus switch. The QS32XVH2245, with 25? ON resistance and 1.35ns propagation delay, is ideal for line matching and low noise environments. The switches can be turned ON under the control of the LVTTL-compatible Output Enable (OEx) signal for bidirectional data flow with no added delay or ground bounce. In the ON state,the switches can pass signals up to 5V. In the OFF state, the switches offer very high impedence at the terminals.
The combination of small propagation delay, high OFF impedance, and over-voltage tolerance makes the QS32XVH2245 ideal for hot-swapping applications.
The QS32XVH2245 is characterized for operation from -40°C to +85°C.
IDTQS32XVH2245 Maximum Ratings
| Symbol | Description | Max | Unit |
| VTERM(2) | SupplyVoltage to Ground | 0.5 to +4.6 | V |
| VTERM(3) | DC Switch Voltage VS | 0.5 to +5.5 | V |
| VTERM(3) | DC Input Voltage VIN | 0.5 to +5.5 | V |
| VAC | AC Input Voltage (pulse width 20ns) | 3 | V |
| IOUT | DC Output Current (max. sink current/pin) | 120 | mA |
| TSTG | Storage Temperature | 65 to +150 | °C |
IDTQS32XVH2245 Features
* N channel FET switches with no parasitic diode to VCC
Isolation under power-off conditions
No DC path to VCC or GND
5V tolerant in OFF and ON state
* 5V tolerant I/Os
* Flat RON characteristics over operating range
* Rail-to-rail switching 0 - 5V
* Bidirectional dataflow with near-zero delay: no added ground bounce
* Excellent RON matching between channels
*VCC operation: 2.3V to 3.6V
* High bandwidth
* LVTTL-compatible control Inputs
* Undershoot Clamp Diodes on all switch and control Inputs
* Low I/O capacitance, 4pF typical
*25 resistors for low noise and line matching
* Available in 40-pin QVSOP package
Isolation under power-off conditions
No DC path to VCC or GND
5V tolerant in OFF and ON state
* 5V tolerant I/Os
* Flat RON characteristics over operating range
* Rail-to-rail switching 0 - 5V
* Bidirectional dataflow with near-zero delay: no added ground bounce
* Excellent RON matching between channels
*VCC operation: 2.3V to 3.6V
* High bandwidth
* LVTTL-compatible control Inputs
* Undershoot Clamp Diodes on all switch and control Inputs
* Low I/O capacitance, 4pF typical
*25 resistors for low noise and line matching
* Available in 40-pin QVSOP package
IDTQS32XVH2245 Typical Application
* Hot-swapping
* Low distortion analog switch
* Replaces mechanical relay
* ATM 25/155 switching
* Low distortion analog switch
* Replaces mechanical relay
* ATM 25/155 switching

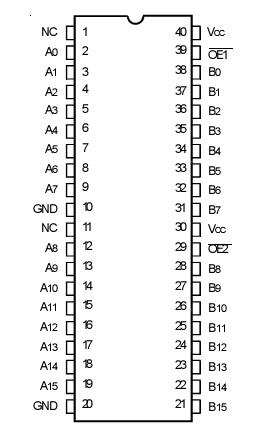

IDTQS32XVH2245 Connection Diagram
