IDTQS34X383

Features: *5 switches connect inputs to outputs* Zero propagation delay* Direct bus connect* Live insertion capability* Low power CMOS proprietary technology* Bus exchange allows nibble swap* TTL-compatible control inputs* Available in 80-pin Millipaq packagePinoutSpecifications Symbol Descr...

product image

IDTQS34X383 Picture
See larger image
SeekIC No. : 004373447 Detail

IDTQS34X383: Features: *5 switches connect inputs to outputs* Zero propagation delay* Direct bus connect* Live insertion capability* Low power CMOS proprietary technology* Bus exchange allows nibble swap* TTL-co...

IDTQS34X383 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS34X383
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*5 switches connect inputs to outputs
* Zero propagation delay
* Direct bus connect
* Live insertion capability
* Low power CMOS proprietary technology
* Bus exchange allows nibble swap
* TTL-compatible control inputs
* Available in 80-pin Millipaq package


Pinout

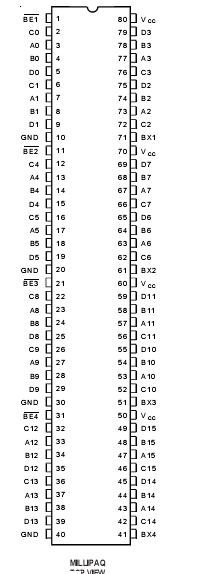

Connection Diagram


Specifications

Symbol Description Max Unit
VTERM(2) Supply Voltage to Ground 0.5 to +7 V
VTERM(3) DC Switch Voltage Vs 0.5 to +7 V
VTERM(3) DC Input Voltage VIN 0.5 to +7 V
VAC AC Input Voltage (pulse width 20ns) 3 V
IOUT DC Output Current 120 mA
PMAX Maximum Power Dissipation (TA = 85°C) 1.4 W
TSTG Storage Temperature 65 to +150



Description

  The IDTQS34X383 provides four sets of eight high-speed CMOS TTL-compatible bus switches. The low ON resistance (5?) of the IDTQS34X383 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The Bus Enable (BEx) signals turn the switches on. The Bus Exchange (BXx) signals provide nibble swap of the AB and CD pairs of signals. This exchange configuration allows byte swapping of buses in systems. It can also be used as a 16-bit 2-to-1 multiplexer and to create low delay barrel shifters, etc.
