• N channel FET switches with no parasitic diode to Vcc
− Isolation under power-off conditions
− No DC path to Vcc or GND
− 5V tolerant in OFF and ON state
• 5V tolerant I/Os
• Low RON - 4Ω typical
• Flat RON characteristics over operating range
• Rail-to-rail switching 0 - 5V
• Bidirectional dataflow with near-zero delay: no added groundbounce
• Excellent RON matching between channels
• Vcc operation: 2.3V to 3.6V
• High bandwidth - up to 500 MHz
• LVTTL-compatible control Inputs
• Undershoot Clamp Diodes on all switch and control Inputs
• Low I/O capacitance, 4pF typical
• Available in SSOP and TSSOP packages
Symbol |
Description |
Max |
Unit |
VTERM(2) |
Supply Voltage to Ground |
0.5 to +4.6 |
V |
VTERM(3) |
DC Switch Voltage Vs |
0.5 to +5.5 |
V |
VTERM(3) |
DC Input Voltage VIN |
0.5 to +5.5 |
V |
VAC |
AC Input Voltage (pulse width 20ns) |
3 |
V |
IOUT |
DC Output Current (max. sink current/pin) |
120 |
mA |
TSTG |
Storage Temperature |
65 to +150 |

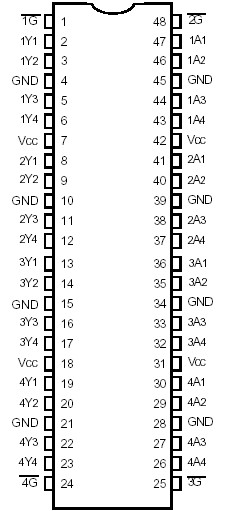

The IDTQS3VH16244 HotSwitch is a 16-bit high band bus switch. The IDTQS3VH16244 has very low ON resistance, resulting in under 250ps propagationdelay through the switch. The switches can be turned ON under thecontrol of the LVTTL-compatible xG signal for bidirectional data flow with noadded delay or ground bounce. In the OFF and ON states, the switches are5V-tolerant. In the OFF state, the switches offer very high impedance at theterminals.
The combination of near-zero propagation delay, high OFF impedance, andover-voltage tolerance makes the QS3VH16244 ideal for high performancecommunications applications.
The IDTQS3VH16244 is characterized for operation from -40 to +85.
