IDTQS4A110

Features: * Low ON resistance: rDS(ON) = 5* Wide bandwidth: 1.8GHz (-3dB point)* Crosstalk: 100dB at 50KHz, -70dB at 5MHz, -50dB at 30MHz* Off-isolation: -70dB at 50KHz, -45dB at 5MHz, -40dB at 30MHz* Single 5V supply* Bidirectional* TTL-compatible control inputs* Ultra-low quiescent current: 3A* ...

product image

IDTQS4A110 Picture
See larger image
SeekIC No. : 004373493 Detail

IDTQS4A110: Features: * Low ON resistance: rDS(ON) = 5* Wide bandwidth: 1.8GHz (-3dB point)* Crosstalk: 100dB at 50KHz, -70dB at 5MHz, -50dB at 30MHz* Off-isolation: -70dB at 50KHz, -45dB at 5MHz, -40dB at 30MH...

IDTQS4A110 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDTQS4A110
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Low ON resistance: rDS(ON) = 5
* Wide bandwidth: 1.8GHz (-3dB point)
* Crosstalk: 100dB at 50KHz, -70dB at 5MHz, -50dB at 30MHz
* Off-isolation: -70dB at 50KHz, -45dB at 5MHz, -40dB at 30MHz
* Single 5V supply
* Bidirectional
* TTL-compatible control inputs
* Ultra-low quiescent current: 3A
* Switch turn on time of 6.5ns
* Available in QSOP package


Application

* High-speed video signal switching/routing
* HDTV-quality video signal routing
* Audio signal switching/routing
* Data acquisition
* ATE systems
* Telecomm routing
* Token Ring transceivers
* High-speed networking


Pinout

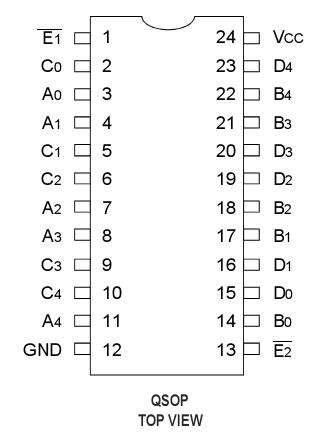

Connection Diagram


Specifications

Symbol Description Max Unit
VTERM(2) Supply Voltage to Ground 0.5 to +7 V
VTERM(3) DC Switch Voltage VS 0.5 to +7 V
- Analog Input Voltage 0.5 to +7 V
VTERM(3) DC Input Voltage VIN 0.5 to +7 V
VAC AC Input Voltage (pulse width 20ns) 3 V
IOUT DC Output Current 120 mA
PMAX Maximum Power Dissipation 0.7 W
TSTG Storage Temperature 65 to +150



Description

  The IDTQS4A110 is a high-performance CMOS two-channel 5PST switch with 3-state outputs. The low ON resistance of the QS4A110 allows inputs to be connected to outputs with low insertion loss and high bandwidth.

  The IDTQS4A110, with 1.8GHz bandwidth, is ideal for high-performance video signal switching, audio signal switching, and telecomm routing applications. Low power dissipation makes this device ideal for battery operated and remote instrumentation applications.

  The IDTQS4A110is offered in the QSOP package which has several advantages over conventional packages such as PDIP and SOIC, includ-
ing:

* Reduced signal delays due to denser component packaging on circuit boards
* Reduced system noise due to less pin inductance
  The IDTQS4A110 is characterized for operation at -40°C to +85°C.
