General Description
IDTQS4A201 General Description
The QS4A201 is a high-performance CMOS two-by-two analog crosspoint switch. This device provides two sets of five high-speed CMOSswitches providing "cross point" connection between inputs and outputs.The low ON resistance of the QS4A201 allows inputs to be connected tooutputs with low insertion loss and high bandwidth. TTL-compatible controlcircuitry with "Break-Before-Make" feature prevents contention.
The QS4A201 with 1.3GHz bandwidth makes it ideal for high-performancevideo signal switching, audio signal switching, and telecomm routingapplications. High performance and low power dissipation makes thisdevice ideal for battery operated and remote instrumentation applications.
The QS4A201 is offered in the QSOP package and has severaladvantages over conventional packages such as PDIP and SOIC, including:
• Reduced signal delays due to denser component packaging on circuitboards
• Reduced system noise due to less pin inductance
The QS4A201 is characterized for operation at -40 to +85.
IDTQS4A201 Maximum Ratings
|
Symbol |
Description |
Max |
Unit |
|
VTERM(2) |
Supply Voltage to Ground |
0.5 to +7 |
V |
|
VTERM(3) |
DC Switch Voltage Vs |
0.5 to +7 |
V |
|
- |
Analog Input Voltage |
0.5 to +7 |
V |
|
VTERM(3) |
DC Input Voltage VIN |
0.5 to +7 |
V |
|
VAC |
AC Input Voltage (pulse width 20ns) |
3 |
V |
|
IOUT |
DC Output Current |
120 |
mA |
|
PMAX |
Maximum Power Dissipation |
0.7 |
W |
|
TSTG |
Storage Temperature |
65 to +150 |
IDTQS4A201 Features
• Low ON resistance: rDS(ON) = 5Ω
• Fast transition time: tTRAN = 6ns
• Wide bandwidth: 1.3GHz (-3dB point)
• Crosstalk: 90dB at 50KHz, -40dB at 5MHz, -30dB at 30MHz
• Off-isolation: -70dB at 50KHz, -40dB at 5MHz, -30dB at30MHz
• Single 5V supply
• Can be used as multiplexer or demultiplexer
• TTL-compatible control inputs
• Ultra-low quiescent current: 3µA
• Switch turn on time of 6.5ns
• Available in QSOP package
• Fast transition time: tTRAN = 6ns
• Wide bandwidth: 1.3GHz (-3dB point)
• Crosstalk: 90dB at 50KHz, -40dB at 5MHz, -30dB at 30MHz
• Off-isolation: -70dB at 50KHz, -40dB at 5MHz, -30dB at30MHz
• Single 5V supply
• Can be used as multiplexer or demultiplexer
• TTL-compatible control inputs
• Ultra-low quiescent current: 3µA
• Switch turn on time of 6.5ns
• Available in QSOP package
IDTQS4A201 Typical Application
• High-speed video signal switching/routing
• HDTV-quality video signal routing
• Phase reversal
• Data acquisition
• ATE systems
• Telecomm routing
• Token Ring transceivers
• High-speed networking
• HDTV-quality video signal routing
• Phase reversal
• Data acquisition
• ATE systems
• Telecomm routing
• Token Ring transceivers
• High-speed networking

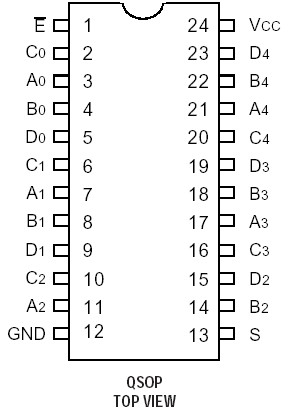

IDTQS4A201 Connection Diagram
IDTQS4A201
