Part Number: IDTQS4A210
Description: The QS4A210 is a high-performance CMOS two-channel SP4T multi-plexer/demultiplexer with individ...
- Table of contents:
IDTQS4A210
-
Suppliers
DataSheet
General Description
IDTQS4A210 General Description
The QS4A210 is a high-performance CMOS two-channel SP4T multi-plexer/demultiplexer with individual enables. The low On-resistance of the QS4A210 allows inputs to be connected to outputs with low insertion loss and high bandwidth. TTL-compatible control circuitry with "Break-Before-Make"feature prevents contention.
The QS4A210 with 700MHz bandwidth makes it ideal for high-perfor-mance video signal switching, audio signal switching, and telecom routing applications. Low power dissipation makes this device ideal for battery operated and remote instrumentation applications.
The QS4A210 is offered in the QSOP package which has several advantages over conventional packages such as PDIP and SOIC, includ-ing:
* Reduced signal delays due to denser component packaging on circuit boards
* Reduced system noise due to less pin inductance, resulting in lower ground bounce
The QS4A210 is characterized for operation at -40°C to +85°C.
IDTQS4A210 Maximum Ratings
| Symbol | Description | Max | Unit |
| VTERM(2) | Supply Voltage to Ground | 0.5 to +7 | V |
| VTERM(3) | DC Switch Voltage VS | 0.5 to +7 | V |
| - | Analog Input Voltage | 0.5 to +7 | V |
| VTERM(3) | DC Input Voltage VIN | 0.5 to +7 | V |
| VAC | AC Input Voltage (pulse width 20ns) | 3 | V |
| IOUT | DC Output Current | 120 | mA |
| PMAX | Maximum Power Dissipation | 0.7 | W |
| TSTG | Storage Temperature | 65 to +150 |
IDTQS4A210 Features
* Low ON resistance: rDS(ON) = 5
* Fast transition time: tTRAN = 6ns
* Wide bandwidth: 700MHz (-3dB point)
* Crosstalk: -110dB at 50KHz, -68dB at 5MHz, -66dB at 30MHz
* Off-isolation: -90dB at 50KHz, -60dB at 5MHz, -50dB at 30MHz
* Single 5V supply
* Can be used as multiplexer or demultiplexer
* TTL-compatible control inputs
* Ultra-low quiescent current: 3A
* Available in QSOP package
* Fast transition time: tTRAN = 6ns
* Wide bandwidth: 700MHz (-3dB point)
* Crosstalk: -110dB at 50KHz, -68dB at 5MHz, -66dB at 30MHz
* Off-isolation: -90dB at 50KHz, -60dB at 5MHz, -50dB at 30MHz
* Single 5V supply
* Can be used as multiplexer or demultiplexer
* TTL-compatible control inputs
* Ultra-low quiescent current: 3A
* Available in QSOP package
IDTQS4A210 Typical Application
* High-speed video signal switching/routing
* HDTV-quality video signal multiplexing
* Audio signal switching/routing
* Data acquisition
* ATE systems
* Telecomm routing
* Switch between multiple video sources
* Token Ring transceivers
* High-speed networking
* HDTV-quality video signal multiplexing
* Audio signal switching/routing
* Data acquisition
* ATE systems
* Telecomm routing
* Switch between multiple video sources
* Token Ring transceivers
* High-speed networking

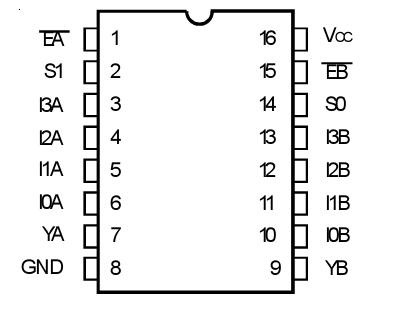

IDTQS4A210 Connection Diagram
