Part Number: IDTQS74FCT2573AT
Description: The IDTQS74FCT2573T is an 8-bit high-speed CMOS TTL-compatible buffered latch with 3-state outputs and...
- Table of contents:
IDTQS74FCT2573AT
-
Suppliers
DataSheet
General Description
IDTQS74FCT2573AT General Description
The IDTQS74FCT2573T is an 8-bit high-speed CMOS TTL-compatible buffered latch with 3-state outputs and a 25 resistor, useful for driving transmission lines and reducing system noise. The 2573T series parts can replace the 573T series to reduce noise in an existing design. All inputs have clamp diodes for undershoot noise suppression. All outputs have ground bounce suppression. Outputs will not load an active bus when Vcc is removed from the device.
IDTQS74FCT2573AT Maximum Ratings
|
Symbol |
Description |
Max |
Unit |
|
VTERM |
Terminal Voltage with Respect to GND |
0.5 to +7 |
V |
|
TSTG |
Storage Temperature |
65 to +150 |
°C |
|
IOUT |
DC Output Current Max Current Sink/Pin |
+120 |
mA |
|
IIK |
Input Diode Current, VIN < 0 |
-20 |
mA |
|
IOK |
DC Output Current, VOUT < 0 |
-50 |
mA |
NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
IDTQS74FCT2573AT Features
• CMOS power levels: <7.5mW static
• Undershoot clamp diodes on all outputs
• True TTL input and output compatibility
• Ground bounce controlled outputs
• Reduced output swing of 0 to 3.5V
• Built-in 25 series resistor outputs reduce reflection and other system noise
• Std. and A speed grades
• IOL = 12mA
• Available in SOIC and QSOP packages
• Undershoot clamp diodes on all outputs
• True TTL input and output compatibility
• Ground bounce controlled outputs
• Reduced output swing of 0 to 3.5V
• Built-in 25 series resistor outputs reduce reflection and other system noise
• Std. and A speed grades
• IOL = 12mA
• Available in SOIC and QSOP packages

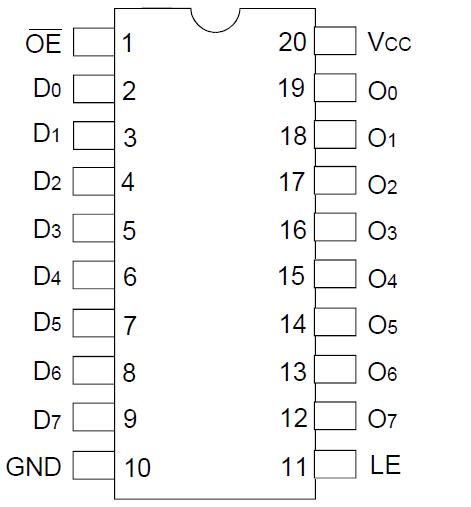

IDTQS74FCT2573AT Connection Diagram
IDTQS74FCT2573AT
