IH5140

Features: • Super Fast Break-Before-Make Switching• SPST Switches (Typ)- tON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80ns- tOFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50ns• Power Supply Currents . . . . . . . . . . . ...

product image

IH5140 Picture
See larger image
SeekIC No. : 004373681 Detail

IH5140: Features: • Super Fast Break-Before-Make Switching• SPST Switches (Typ)- tON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80ns- tOFF . . . . . . . . . . . . . ...

IH5140 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IH5140
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Super Fast Break-Before-Make Switching
• SPST Switches (Typ)
- tON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80ns
- tOFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50ns
• Power Supply Currents . . . . . . . . . . . . . . . . . . . . <1mA
• OFF Leakages at 25oC (Typ) . . . . . . . . . . . . . . . <100pA
• Non-Latching with Supply Turn-Off
• Single Monolithic CMOS Chip
• Plug-In Replacements for IH5040 Family and Part of the DG180 Family to Upgrade Speed and Leakage
• Toggle Rate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >1MHz
• Switches Signals with ±15V Supplies. . . . . . . . . . . . >20VP-P
• TTL, CMOS Direct Compatibility
• Internal Diode in Series with V+ for Fault Protection



Pinout

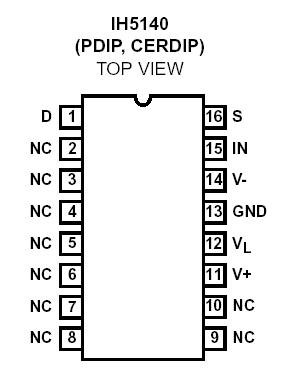

Connection Diagram


Specifications

V+ to V-. . . . . . . . . . . . . . . .  <36V
V+ to VD . . . . . . . . . . . . . . .  <30V
VD to V- . . . . . . . . . . . . . . . . <30V
VD to VS . . . . . . . . . . . . . . <±22V
VL to V- . . . . . . . . . . . . . . . . <33V
VL to VIN. . . . . . . . . . . . . . .  <30V
VL to GND . . . . . . . . . . . . . .  <20V
VIN to GND. . . . . . . . . . . . . . <20V
Current (Any Terminal) . . . .30mA


Description

The IH5140 Family of CMOS switches utilizes Harris' latchfree junction isolated processing to build the fastest switches currently available. These switches IH5140 can be toggled at a rate of greater than 1MHz with fast tON times (80ns typical) and faster tOFF times (50ns typical), guaranteeing break before make switching. This family of switches combines the speed of the hybrid FET DG180 family with the reliability and low power consumption of a monolithic CMOS construction.

Very low quiescent power IH5140 is dissipated in either the ON or the OFF state of the switch. Maximum power supply current is 10mA (at 25oC) from any supply and typical quiescent currents are in the 10nA which makes these devices ideal for portable equipment and military applications.

The IH5140 Family is completely compatible with TTL (5V) logic, TTL open collector logic and CMOS logic. It is pin compatible with Harris' IH5040 family and part of the DG180/DG190 family as shown in the switching state diagrams.
