IL082

Features: • Low power consumption• Wide common-mode and differential voltage range• Low input bias and offset currents• Low noise en=18 nV/Hz (typ)• Output short-circuit protection• High input impedance J-FET input stage• Low harmonic distortion: 0.01% (ty...

product image

IL082 Picture
See larger image
SeekIC No. : 004373789 Detail

IL082: Features: • Low power consumption• Wide common-mode and differential voltage range• Low input bias and offset currents• Low noise en=18 nV/Hz (typ)• Output short-circui...

IL082 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IL082
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low power consumption
• Wide common-mode and differential voltage range
• Low input bias and offset currents
• Low noise en=18 nV/Hz (typ)
• Output short-circuit protection
• High input impedance J-FET input stage
• Low harmonic distortion: 0.01% (typ)
• Internal frequency compensation
• Latch up free operation
• High slew rate: 13 V/s (typ)


Pinout

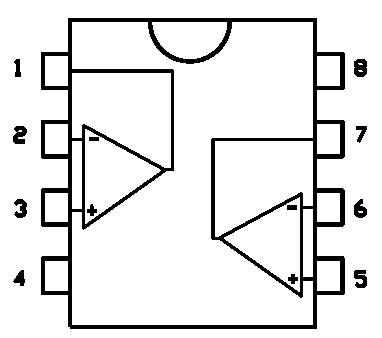

Connection Diagram


Specifications

Symbol Parameter IL062 Units
VCC Supply Voltage (note 1) ±18 V
Vi Input Voltage (note 3) ±15 V
Vid Differential Input Voltage (note 2) ±30 V
Ptot Power Dissipation 680 mW
  Output Short-Circuit Duration (Note 4) Infinite
Toper Operating Free-Air Temperature Range -40 to +85 °C
Tstg Storage Temperature Range -65 to +150 °C



Description

The IL082 are high speed JFET input dual operational amplifiers incorporating well matched, high voltage JFET and bipolar transistors in a monolithic integrated circuit.

The IL082 feature high slew rates, low input bias and offset current, and low offset voltage temperature coefficient.
