Part Number: IL2410









Description: The IL2410 is a bipolar integrated circuit designed for telephone bell replacement.


Urgent Purchase

IL2410 General Description


The IL2410 is a bipolar integrated circuit designed for telephone bell replacement.

IL2410 Maximum Ratings

Symbol Parameter Value Unit
VCC DC Supply Voltage (Referenced to GND) to +30.0 V
PD Power Dissipation in Still Air, Plastic DIP 400 mW
Tstg Storage Temperature -65 to +150 °C

IL2410 Features

• Designed for Telephone Bell Replacement
• Low Curent Drain
• Adjustable 2-frequency Tone
• Adjustable Warbling Rate
• Extension Tone Ringer Modules
• Alarms or Other Alerting Devices
• External Triggering or Ringer Disable
• Built-in hysteresis prevents false triggering and rotary dial 'Chirps'

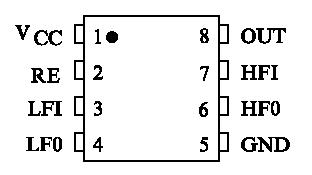

IL2410 Connection Diagram

IL2410 Connection Diagram
