Product Details

Description



Features:

` 5V CMOS/TTL Compatible
` High Speed: 110 MBaud
` 2500 VRMS Isolation (1 min)
` 2 ns Typical Pulse Width Distortion
` 4 ns Typical Propagation Delay Skew
` 10 ns Typical Propagation Delay
` 30 kV/µs Typical Transient Immunity
` 2 ns Channel to Channel Skew
` 0.3'' and 0.15'' 16Pin SOIC Packages
` Extended Temperature Range (-40°C to +85°C)
` UL1577 Approval Pending
` IEC 61010-1 Approval Pending




Application

· ADCs and DACs
· Multiplexed Data Transmission
· Data Interfaces
· Board-To-Board Communication
· Digital Noise Reduction
· Operator Interface
· Ground Loop Elimination
· Peripheral Interfaces
· Parallel Bus
· Logic Level Shifting
· Plasma Displays



Pinout

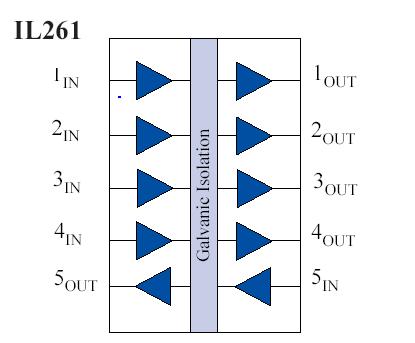

  Connection Diagram


Specifications

Parameters Symbol Min. Max. Units
Storage Temperature TS -55 175
Ambient Operating Temperature(1) TA -55 125
Supply Voltage VDD1,VDD2 -0.5 7 Volts
Input Voltage VI -0.5 VDD+0.5 Volts
Output Voltage VO -0.5 VDD+0.5 Volts
Output Current Drive Channel IO   10 mA
Lead Solder Temperature (10s) 280
ESD 2kV Human Body Model



Description

NVE's family of high-speed digital isolators of the IL26X are CMOS devices created by integrating active circuitry and our GMR-based and patented* IsoLoop® technology. The IL260 and IL261 are five channel versions of the world's fastest digital isolator with a 110 Mbaud data rate. These devices provide the designer with the most compact isolated logic devices yet available.  All transmit and receive channels of the IL26X operate at 110 Mbd over the full temperature and supply voltage range. The symmetric magnetic coupling barrier provides a typical propagation delay of only 10 ns and a pulse width distortion of 2 ns achieving the best specifications of any isolator device. Typical transient immunity of 30 kV/µs is unsurpassed. The IL260 has five transmit channels, while the IL261 has four transmit channels and one receive channel. Their high channel density of the IL26X make them ideally suited to isolating multiple ADCs and DACs, parallel buses and peripheral interfaces.

Performance of the IL26X is specified over the temperature range of -40°C to +85°C
without any derating.
