IL33153

Features: • High Current Output Stage: 1.0 A Source/2.0 A Sink• Protection Circuits for Both Conventional and Sense IGBTs• Programmable Fault Blanking Time• Protection against Overcurrent and Short Circuit• Undervoltage Lockout Optimized for IGBT's• Negative Gat...

product image

IL33153 Picture
See larger image
SeekIC No. : 004373984 Detail

IL33153: Features: • High Current Output Stage: 1.0 A Source/2.0 A Sink• Protection Circuits for Both Conventional and Sense IGBTs• Programmable Fault Blanking Time• Protection agains...

IL33153 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IL33153
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Current Output Stage: 1.0 A Source/2.0 A Sink
• Protection Circuits for Both Conventional and Sense IGBTs
• Programmable Fault Blanking Time
• Protection against Overcurrent and Short Circuit
• Undervoltage Lockout Optimized for IGBT's
• Negative Gate Drive Capability
• Cost Effectively Drives Power MOSFETs and Bipolar Transistors


Pinout

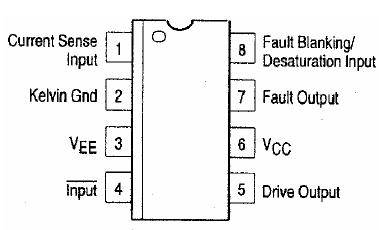

Connection Diagram


Specifications

Rating Symbol Value Unit
Power Supply Voltage
VCC to VEE
Kelvin Ground to VEE (Note 1 )		 VCC-VEE
KGnd - VEE		 VEE-O,3 to VCC V
Logic Input Vin VEE-O,3 to VCC V
Current Sense Input VS -0.3 to Vcc V
Blanking/Desaturation Input VBD -0.3 to Vcc V
Gate Drive Output
Source Current
Sink Current
Diode Clamp Current		 IO 1.0
2.0
1.0		 A
Fault Output
Source Current
Sink Curent		 IFO 0.56
180
1.0
100		 mA
Power Dissipation and Thermal Characteristics
D Suffix SO-8 Package, Case 751
Maximum Power Dissipation @ TA = 5O°C Thermal
Resistance, Junction-to-Air
P Suffix DIP-8 Package, Case 626
Maximum Power Dissipation @ TA = 5O°C Thermal
Resistance, Junction-to-Air		 PD
RJA
PD
RJA		 0.56
180
1.0
100		 mW
°C/W
mW
0C/W
Operating Junction Temperature TJ +150 °C
Operating Ambient Temperature TA -40 to +105 °C
Storage Temperature Tstg -65 to +150 °C



Description

The IL33153 is specifically designed as an IGBT driver for high power applications that include ac induction motor control, brushless dc motor control and uninterruptable power supplies. Although designed for driving discrete and module IGBTs, this device offers a cost effective solution for driving power MOSFETs and Bipolar Transistors. Device protection features include the choice of desaturation or overcurrent sensing and undervoltage detection. These devices of the IL33153 are available in dualinline and surface mount packages and include the following features:
