Product Details

Description



Features:

• Single or Split Supply Operation
• Low Input Bias Current
• Low Input Offset Current
• Input Common Mode Voltage Range to Gnd
• Low Output Saturation Voltage
• TTL and CMOS Compatible



Pinout

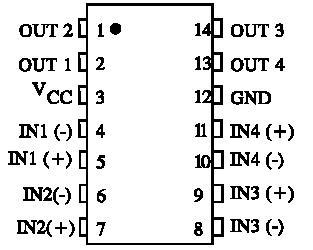

  Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Power Supply Voltages
Single Supply
Split Supplies
32
±18
V
VIDR Input Differential Voltage Range (1) 36 V
VICR Input Common Mode Voltage Range -0.3 to VCC V
ISC Output Short Circuit Duration Continuous
IIN Input Current, per pin (2) 50 mA
TJ Junction Temperature
Plastic Packages
150 °C
Tstg Storage Temperature
Plastic Packages
-65 to +150 °C
TL Lead Temperature, 1mm from Case for 10 Seconds 260 °C
PD Power Dissipation @TA=25°C
Plastic Package
Derate above 25°C
1.0
8.0
W
mW/°C



Description

The IL339 consists of four independent precision voltage comparators with an offset voltage specification as low as 2.0 mV max for four comparators which were designed specifically to operate from a single power supply over a wide range of voltages.

Application areas of the IL339 include limit comparators, simple analog to digital converters; pulse, squarewave and time delay generators; wide range VCO; MOS clock timers; multivibrators and high voltage digital logic gates.
