IL34063A

Features:

• Operation from 3.0 V to 40 V Input
• Low Standby Current
• Current Limiting
• Output Switch Current to 1.5 A
• Output Voltage Adjustable
• Frequency Operation to 100 kHz
• Precision 2% Reference

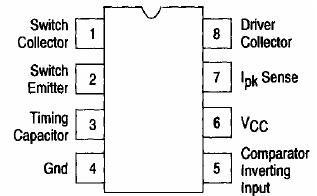

Pinout




Specifications

Rating	Symbol	Value	Unit
Power Supply Voltage	VCC	40	Vdc
Comparator Input Voltage Range	VIR	-0.3 to+40	Vdc
Switch Collector Voltage	VC(switch)	40	Vdc
Switch Emitter Voltage (Vpin 1 = 40 V)	VE(switch)	40	Vdc
Switch Collector to Emitter Voltage	VCE(switch)	40	Vdc
Driver Collector Voltage	IC(driver)	40	Vdc
Driver Collector Current (Note 1)	IC(driver)	100	mA
Switch Current	ISW	1.5	A
Power Dissipation and Thermal Characteristics Ceramic Package, U Suffix TA = +25°C Thermal Resistance Plastic Package, P Suffix TA = +25°C Thermal Resistance SOIC Package, D Suffix TA = +25°C Thermal Resistance	PD RJA PD RJA PD RJA	1.25 100 1.25 100 625 160	W °C/W W °C/W mW °C/W
Operating Junction Temperature	TJ	+150	°C
Operating Ambient Temperature Range	TA	0 to +70	°C
Storage Temperature Range	Tstg	-65to+150	°C

Description

The IL34063Ais a monolithic control circuit containing the primary functions required for DC-to-DC converters.

These devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. This series of the IL34063A was specifically designed to be incorporated in Step-Down and Step-Up and Voltage-Inverting applications with a minimum number of external components.
