MFG:NVE Package Cooled:SOP D/C:449
MFG: NVE
Package Cooled: SOP
D/C: 449
Description: The IL422-3V is a galvanically isolated, high speed differential driver and receiver pair, designed fo...

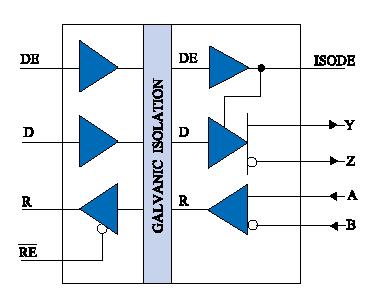

The IL422-3V is a galvanically isolated, high speed differential driver and receiver pair, designed for bidirectional data communication on balanced transmission lines. Isolation is achieved through patented* Isoloop® technology. The IL422-3V is the first isolated RS-422 interface available in a standard 16 pin SOIC package, which meets the ANSI Standards EIA/TIA-422-B and RS485.
The IL422-3V has current limiting and thermal shutdown features to protect against output short circuits and bus contention situations where these may cause excessive power dissipation.
| Parameters | Symbol | Min. | Max. | Units |
| Storage Temperature | TS | -65 | 150 | |
| Ambient Operating Temperature | TA | -40 | 85 | |
| Voltage Range at A or B Bus Pins | -7 | 12 | V | |
| Supply Voltage(1) | VDD1,VDD2 | -0.5 | 7 | V |
| Digital Input Voltage | -0.5 | 5.5 | V | |
| Digital Output Voltage | -0.5 | VDD+ 0.1 | V | |
| Continuous Total Power Dissipation | 725 377 |
mW (25°C) mW (85°C) | ||
| Maximum Output Current | IO | 95 | mA | |
| Lead Solder Temperature (10s) | 260 | °C | ||
| ESD | 2kV Human Body Model | |||
IL422-3V
PDF/DataSheet Download
ISOLATOR RS422/485 INTFC 16SOICW
