IL55B

Features: • High Collector-Emitter Breakdown Voltage-80 V minimum• High Isolation Resistance, 1011 W Typical• Standard Plastic DIP Package• Underwriters Lab File #E52744• VDE 0884 Available with Option 1PinoutSpecificationsPeak Reverse Voltage ...........................

product image

IL55B Picture
See larger image
SeekIC No. : 004374052 Detail

IL55B: Features: • High Collector-Emitter Breakdown Voltage-80 V minimum• High Isolation Resistance, 1011 W Typical• Standard Plastic DIP Package• Underwriters Lab File #E52744̶...

IL55B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IL55B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Collector-Emitter Breakdown Voltage-80 V minimum
• High Isolation Resistance, 1011 W Typical
• Standard Plastic DIP Package
• Underwriters Lab File #E52744
• VDE 0884 Available with Option 1



Pinout

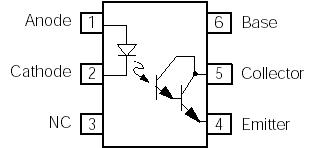

Connection Diagram


Specifications

Peak Reverse Voltage ............................... 3 V
Continuous Forward Current .................60 mA
Power Dissipation at 25°C................ 100 mW
Derate Linearly from 55°C......... 1.33 mW/°C


Description

The IL55B is an optically coupled isolator with a Gallium Arsenide infrared LED and a silicon photodarlington sensor. Switching can be achieved while maintaining a high degree of isolation between driving and load circuits. These optocouplers of the IL55B can be used to replace reed and mercury relays with advantages of long life, high speed switching and elimination of magnetic fields.
