Part Number: IL5851
Description: The IL5851 is a monolithic CMOS integrated circuit which uses an inexpensive RC oscillator for its fre...
- Table of contents:
IL5851
-
Suppliers
DataSheet
General Description
IL5851 General Description
The IL5851 is a monolithic CMOS integrated circuit which uses an inexpensive RC oscillator for its frequency reference and provides all the features required for implementing a pulse dialer with 32 digit redial.
IL5851 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| VCC | DC Supply Voltage (Referenced to GND) | -0.3 to +6.2 | V |
| VIN | DC Input Voltage (Referenced to GND) | -0.3 to VCC +0.3 | V |
| PD | Power Dissipation in Still Air ** | 500 | mW |
| Tstg | Storage Temperature | -40 to +125 | °C |
* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the Recommended Operating Conditions.
** Derating: -10 mW/°C from 65°C to 70°C.
IL5851 Features
• Wide operating voltage range (2.0~6.0V)
• Low power dissipation
• Use either a standard 2 of 7 matrix keyboard with negative true common or the inexpensive form A-type keyboard
• Make/Break ratio can be selected
• Redial with * or #
• Continuous MUTE
• Power up clear circuitry on chip
• 10 pps/20 pps can be selected
• Low power dissipation
• Use either a standard 2 of 7 matrix keyboard with negative true common or the inexpensive form A-type keyboard
• Make/Break ratio can be selected
• Redial with * or #
• Continuous MUTE
• Power up clear circuitry on chip
• 10 pps/20 pps can be selected

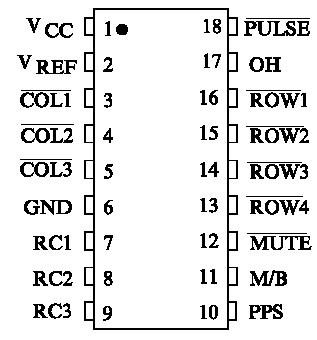

IL5851 Connection Diagram
IL5851
