Part Number: IL6965









Description: The IL6965 is a bipolar integrated circuit for use in electronic telephones.The IL6965 has low...


Urgent Purchase

IL6965 General Description


The IL6965 is a bipolar integrated circuit for use in electronic telephones.

The IL6965 has low operating voltage, it provides an excellent branch performance.

It has line voltage increasing circuit by the external terminal. Transmitting and receiving gains automatically vary according to the line current.

IL6965 Maximum Ratings

Parameter Symbol Value Unit
Line Voltage VL 15 V
Line Cuttent IL 150 mA
Power dissipation PD 1300 mW
Operating Temperature TOPR -30~70 °C
Storage Temperature Tstg -55~150 °C

IL6965 Features

• Externally adjustable transmitting, receiving and sidetone gains.
• Switching between transmitting output and DTMF output is possible.
• Direct interface with light and compact ceramic transmitter-receiver is possible.
• Receiver follow impedance type can also be used.
• Gain is automatically controlled according to the line current. (Auto-PAD function)
• The line voltage can be increased by the external terminal (Up function).
• PKG is 20pin DIP & SOP

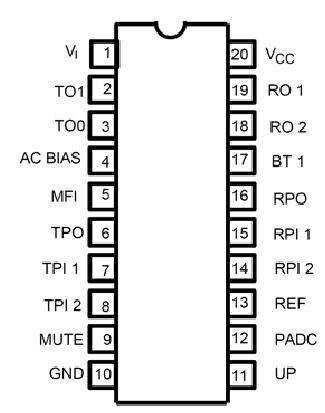

IL6965 Connection Diagram

IL6965 Connection Diagram

IL6965 datasheet

IL6965
PDF/DataSheet Download
