Features: • Internal RBE for Better Stability• High Current Transfer Ratios, VCE=5V IL/ILD766-1: 500% at IF=2 mA IL/ILD766-2: 500% at IF=1.0 mA• BVCEO>60 V• AC or Polarity Insensitive Inputs• Built-In Reverse Polarity Input Protection• Industry Standard DIP P...
IL766: Features: • Internal RBE for Better Stability• High Current Transfer Ratios, VCE=5V IL/ILD766-1: 500% at IF=2 mA IL/ILD766-2: 500% at IF=1.0 mA• BVCEO>60 V• AC or Polarity...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
The IL766 are bidirectional input optically coupled isolators. They consist of two Gallium Arsenide infrared emitting diodes coupled to a silicon NPN photodarlington per channel.

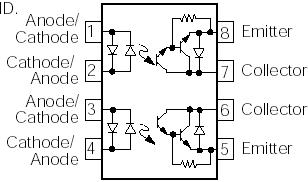

The IL766 are single channel optocouplers. The ILD766 has two isolated channels in a single DIP package. They are designed for applications requiring detection or monitoring of AC signals.
