ILA6107Q

Features: • Typical bandwidth of 5.5 MHz for an output signal of 60 V (p-p)• High slew rate of 900 V/µs• No external components required• Very simple application• Single supply voltage of 200 V• Internal reference voltage of 2.5 V• Fixed gain of 50&#...

product image

ILA6107Q Picture
See larger image
SeekIC No. : 004374138 Detail

ILA6107Q: Features: • Typical bandwidth of 5.5 MHz for an output signal of 60 V (p-p)• High slew rate of 900 V/µs• No external components required• Very simple application•...

ILA6107Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ILA6107Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Typical bandwidth of 5.5 MHz for an output signal of 60 V (p-p)
• High slew rate of 900 V/µs
• No external components required
• Very simple application
• Single supply voltage of 200 V
• Internal reference voltage of 2.5 V
• Fixed gain of 50
• Black-Current Stabilization (BCS) circuit
• Thermal protection.




Pinout

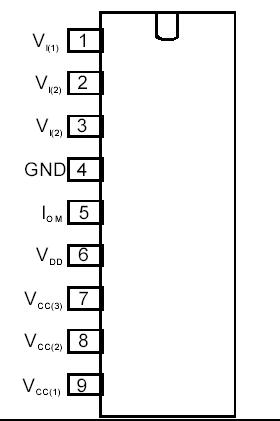

Connection Diagram




Specifications

In accordance with the Absolute Maximum Rating System (IEC 134); voltage measured with respect to pin 4 (ground); currents as specified in Fig. 1; unless otherwise specified.
SYMBOL PARAMETER MIN. MAX. UNIT
VDD supply voltage 0 250
Vi supply voltage at pins 1 to 3 0 12
Vo(m) measurement output voltage 0 6
Vo(c) cathode output voltage 0 VDD
Tstg storage temperature -55 +150 °C
Tj junction temperature -20 +150 °C
Ves electrostatic handling
Human Body Model (HBM)
Machine Model (MM)		 -
-		 2000
300		 V
V





Description

The ILA6107Q includes three video output amplifiers in one plastic DIL-bent-SIL 9-pin medium power (DBS9MPF) package (SOT111-1), using high-voltage DMOS technology, and is intended to drive the three cathodes of a colour CRT directly. To obtain maximum performance, the amplifier should be used with blackcurrent control
