General Description
ILC7071 General Description
The ILC7071 is an 100mA, Low Noise, Low Dropout (LDO) linear regulator, designed and processed in CMOS technology. This process combines the best CMOS features of low quiescent current, small size and low dropout voltage with the best bipolar features of high ripple rejection, low noise and power handling capability. The ILC7071 offers a quiescent current of less than 100A, a logic level enable (regulator EN) pin, the size of the industry standard SOT-23 and a low dropout voltage of 25mV at 10mA. With better than 70 dB (1kHz) of ripple rejection, low noise of 40 VRMS and 1% output voltage accuracy, the ILC7071 is ideally suited for communications and personal electronics
ILC7071 Maximum Ratings
| Parameter |
Min. |
Max. |
Units |
| Supply Voltage: |
10 |
V | |
| EN Input Voltage |
-0.3 |
VIN + 0.3 |
V |
| Output Voltage |
-0.3 |
VIN + 0.3 |
V |
| Junction Temperature (TJ) |
125, Internally limited |
°C | |
| Storage Temperature |
-40 |
150 |
°C |
| Lead Soldering Temperature, 10 seconds |
300 |
°C | |
| Power Dissipation (PD) |
150 |
mW |
ILC7071 Features
•1% output voltage accuracy
•Low noise
•Only 90A ground current at 100mA load
•Ripple rejection up to 75 dB at 1kHz
•Excellent line and load transient response
•Guaranteed to 100mA output current
•Industry standard five lead SOT-23 packages
•Fixed 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 2.9V, 3.0V, 3.1V, 3.3V and
custom output voltage options
•Low noise
•Only 90A ground current at 100mA load
•Ripple rejection up to 75 dB at 1kHz
•Excellent line and load transient response
•Guaranteed to 100mA output current
•Industry standard five lead SOT-23 packages
•Fixed 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 2.9V, 3.0V, 3.1V, 3.3V and
custom output voltage options
ILC7071 Typical Application
•Cellular phones
•Wireless communicators
•PDAs/palmtops/organizers
•Battery powered portable electronics
•Wireless communicators
•PDAs/palmtops/organizers
•Battery powered portable electronics

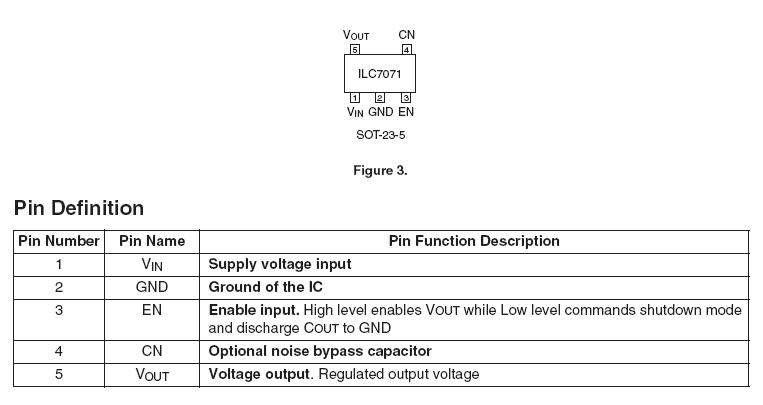

ILC7071 Connection Diagram
ILC7071
PDF/DataSheet Download
- Datasheet: ILC7071
- File Size: 31674 KB
- Manufacturer:
- Click here to Download
