General Description
ILD55 General Description
The IL30/31/55, ILD30/31/55, and ILQ30/31/55 are optically coupled isolators wih Gallium Arsenide infrared emitters and silicon photodarlington sensors. Switching can be achieved while maintaining a high degree of isolation between driving and load circuits, with no crosstalk between channels. These optocouplers can be used to replace reed and mercury relays with advantages of long life, high speed switching and elimination of magnetic fields.
The Il30/31/55 are equivalent to MCA230/MCA231/ MCA255. The ILD30/31/55 re designed to reduce board space requirements in high density applications.
ILD55 Maximum Ratings
Peak Reverse Voltage............................ 3 V
Continuous Forward Current..............60 mA
Power Dissipation at 25°C.............100 mW
Derate Linearly from 25°C .....1.33 mW/°C
Continuous Forward Current..............60 mA
Power Dissipation at 25°C.............100 mW
Derate Linearly from 25°C .....1.33 mW/°C
ILD55 Features
• Current Transfer Ratio
• IL/ILD/ILQ30/55, 100% min.
• IL/ILD/ILQ31, 200% min.
• 125 mA Load Current Rating
• Fast Rise Time, 10mS
• Fast Fall Time, 35mS
• Single, Dual and Quad Channel
• Solid State Reliability
• Standard DIP Packages
• Underwriters Lab File #E52744
• VDE 0884 Available with Option 1
• IL/ILD/ILQ30/55, 100% min.
• IL/ILD/ILQ31, 200% min.
• 125 mA Load Current Rating
• Fast Rise Time, 10mS
• Fast Fall Time, 35mS
• Single, Dual and Quad Channel
• Solid State Reliability
• Standard DIP Packages
• Underwriters Lab File #E52744
• VDE 0884 Available with Option 1

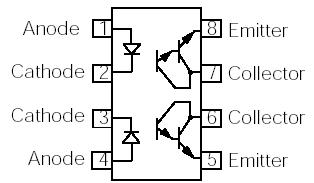

ILD55 Connection Diagram
ILD55
