General Description
ILN2003A General Description
The ILN2003A are monolithic high-voltage, high-current Darlington transistor arrays. Each consists of seven n-p-n Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of a single Darlington pair is 500 mA. The Darlington pairs may be paralleled for higher current capability. Applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers.
The ILN2003A has a 2.7-kseries base resistor for each Darlington pair for operation directly with TTL or 5-V CMOS devices.
ILN2003A Maximum Ratings
Collector-emitter voltage . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . .50 V
Input voltage, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 30 V
Peak collector current (see Figures 14 and 15) . . . . . . . . . . . . . . . . 500 mA
Output clamp current, IOK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500 mA
Total emitter-terminal current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5 A
Continuous total power dissipation See . . . . . . . . .Dissipation Rating Table
Operating free-air temperature range, TA . . . . . . . . . . . . .20°C to 85°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . .65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . 260°C
Input voltage, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 30 V
Peak collector current (see Figures 14 and 15) . . . . . . . . . . . . . . . . 500 mA
Output clamp current, IOK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500 mA
Total emitter-terminal current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5 A
Continuous total power dissipation See . . . . . . . . .Dissipation Rating Table
Operating free-air temperature range, TA . . . . . . . . . . . . .20°C to 85°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . .65°C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . 260°C
ILN2003A Features
·500-mA Rated Collector Current (Single Output)
·High-Voltage Outputs . . . 50 V
·Output Clamp Diodes
·Inputs Compatible With Various Types of Logic
·Relay Driver Applications
·High-Voltage Outputs . . . 50 V
·Output Clamp Diodes
·Inputs Compatible With Various Types of Logic
·Relay Driver Applications

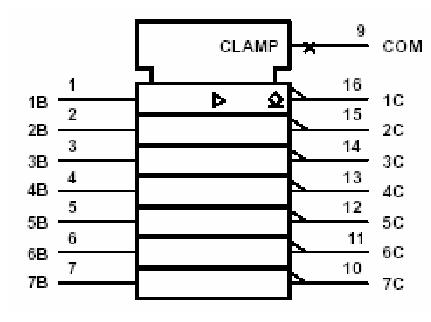

ILN2003A Connection Diagram
ILN2003A
PDF/DataSheet Download
- Datasheet: ILN2003A
- File Size: 298373 KB
- Manufacturer: INTEGRAL [Integral Corp.]
- Click here to Download
- ·ILN2003AD
- INTEGRAL [Integral Corp.]
- HIGH-VOLTAGE HIGH-CURRENT DARLINGTON TRANSISTOR ARRAYS
- 298373 KB
- ·ILN2003AN
- INTEGRAL [Integral Corp.]
- HIGH-VOLTAGE HIGH-CURRENT DARLINGTON TRANSISTOR ARRAYS
- 298373 KB
