IMISG509

Features: · Generates CPU clock signals for microprocessor systems· Reduces measured EMI by 10 dB nominal· 4V to 6V operating supply range· Supports CPUs from all major manufacturers.· Wide range of selectable output frequencies including 60, 50, 48, 40, 33.3, 16.7· Single, low-cost crystal used a...

product image

IMISG509 Picture
See larger image
SeekIC No. : 004374429 Detail

IMISG509: Features: · Generates CPU clock signals for microprocessor systems· Reduces measured EMI by 10 dB nominal· 4V to 6V operating supply range· Supports CPUs from all major manufacturers.· Wide range of...

IMISG509 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IMISG509
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Generates CPU clock signals for microprocessor systems
· Reduces measured EMI by 10 dB nominal
· 4V to 6V operating supply range
· Supports CPUs from all major manufacturers.
· Wide range of selectable output frequencies including 60, 50, 48, 40, 33.3, 16.7
· Single, low-cost crystal used as reference frequency
· Glitch-free switching
· 50% duty cycle
· TTL or CMOS compatible outputs with 6 mA drive capability
· Low, short and long-term jitter
· 16 pin P-DIP and 16 Pin SOIC (300 mil body) package options


Application

IMISG509 eliminates the need for multiple oscillators and generates the CPU clock signals for personal computers, laser printers and other digital systems. Supports CPUs from all major manufacturers.


Pinout

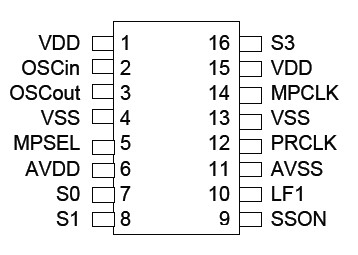

Connection Diagram


Specifications

Voltage Relative to VSS ..........-0.3
Voltage Relative to VDD......... 0.3V
Storage Temperature:. -65° to +150°C
Ambient Temperature: -0°C to + 70°C
Maximum supply voltage: 7.0V


Description

The IMISG509 is a spectrum spread clock generator specially designed for personal computers, laser printers and other digital systems. IMISG509 uses a patented concept to generate popular clock frequencies that are intentionally broadbanded to reduce electromagnetic interference. The radiated emissions,associated with either the clock, harmonics or any signals derived from the clock, nominally reduced by 10 dB and could significantly reduce the cost of complying with the regulatory requirements.

PRCLK IMISG509 is the broadbanded output and can be programmed by the PRCLK Frequency Selection Table on Page 2. A single, low cost external crystal is required as reference frequency for the synthesizer.The output modulation function of IMISG509 can be disabled when the SSON pin is high.
