General Description
IN24LC16 General Description
The IN24LC16 is a 16K bit Electrically Erasable PROM. The device is organized as eight blocks of 256 x 8 bit memory with a 2-wire serial interface. Low voltage design permits operation down to 2.5 volts with standby and active currents of only 5 A and 1 mA respectively. The IN24LC16 also has a page-write capability for up to 16 bytes of data. The IN24LC16 is available in the standard 8-pin DIP surface mount SO.
IN24LC16 Maximum Ratings
| Symbol |
Parameter |
Value |
Unit | |
|
min |
max | |||
| VCC | Supply voltage | 0 |
7.0 |
V |
| VI | Input voltage | -0.3 | VCC+1V | V |
| Storage temperature | -65 | 150 | C | |
| Ta | Ambient temperature | -65 | 120 | C |
IN24LC16 Features
• Single supply with operation down to 2.5V
• Low power CMOS technology
- 1 mA active current typical
- 10 A standby current typical at 5.5V
- 5 A standby current typical at 3.0V
• Organized as 8 blocks of 256 bytes (8 x 256 x 8)
• 2-wire serial interface bus, I2C compatible
• Schmitt trigger inputs for noise suppression
• Output slope control to eliminate ground bounce
• 100 kHz (E-temp) and 400 kHz (C/I-temp) compatibility
• Self-timed write cycle (including auto-erase)
• Page-write buffer for up to 16 bytes
• 2 ms typical write cycle time for page-write
• Hardware write protect for entire memory
• Can be operated as a serial ROM
• 1,000,000 erase/write cycles guaranteed
• Data retention > 200 years
• 8-pin DIP, 8-lead SOIC,
• Low power CMOS technology
- 1 mA active current typical
- 10 A standby current typical at 5.5V
- 5 A standby current typical at 3.0V
• Organized as 8 blocks of 256 bytes (8 x 256 x 8)
• 2-wire serial interface bus, I2C compatible
• Schmitt trigger inputs for noise suppression
• Output slope control to eliminate ground bounce
• 100 kHz (E-temp) and 400 kHz (C/I-temp) compatibility
• Self-timed write cycle (including auto-erase)
• Page-write buffer for up to 16 bytes
• 2 ms typical write cycle time for page-write
• Hardware write protect for entire memory
• Can be operated as a serial ROM
• 1,000,000 erase/write cycles guaranteed
• Data retention > 200 years
• 8-pin DIP, 8-lead SOIC,

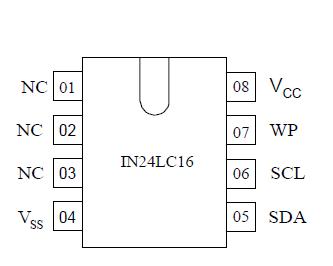

IN24LC16 Connection Diagram
IN24LC16
PDF/DataSheet Download
- Datasheet: IN24LC16
- File Size: 217317 KB
- Manufacturer: INTEGRAL [Integral Corp.]
- Click here to Download
