IN556
-
Suppliers
DataSheet
General Description
IN556 Maximum Ratings
| Symbol |
Parameter |
Value | Unit |
| VCC | Supply Voltage | 18 | V |
| Tstg | Storage Temperature | -60 to +85 | °C |
IN556 Features
• Timing From Microseconds Through Hours
• Operates in Both Astable and Monostable Modes
• High Current Output Can Source or Sink 200 mA
• Operates in Both Astable and Monostable Modes
• High Current Output Can Source or Sink 200 mA

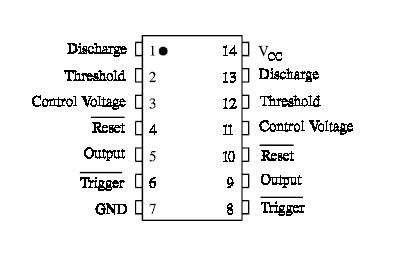

IN556 Connection Diagram
IN556
PDF/DataSheet Download
- Datasheet: IN556
- File Size: 117431 KB
- Manufacturer:
- Click here to Download
