IN7100

Features: • 4.194304 MHz crystal oscillator• 4-ways display brightness control ( Segment signal duty: 1, 1/4, 1/8, 1/16 )• Hours and Minutes Setting• ± 30 seconds auto correction• 1024 Hz external clock drive• 1024 Hz SIGNAL output• Segment Output: P-chann...

product image

IN7100 Picture
See larger image
SeekIC No. : 004374679 Detail

IN7100: Features: • 4.194304 MHz crystal oscillator• 4-ways display brightness control ( Segment signal duty: 1, 1/4, 1/8, 1/16 )• Hours and Minutes Setting• ± 30 seconds auto correc...

IN7100 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IN7100
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 4.194304 MHz crystal oscillator
• 4-ways display brightness control ( Segment signal duty: 1, 1/4, 1/8, 1/16 )
• Hours and Minutes Setting
• ± 30 seconds auto correction
• 1024 Hz external clock drive
• 1024 Hz SIGNAL output
• Segment Output: P-channel open drain
• 40 DIP package MS-011AC


Pinout

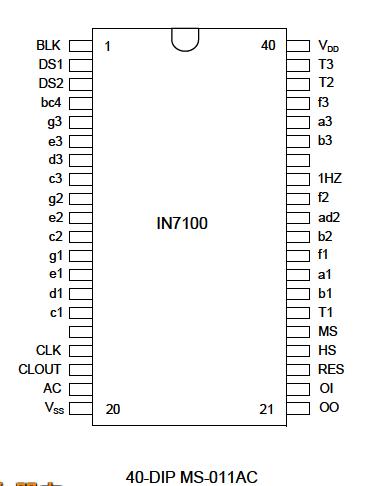

Connection Diagram


Specifications

Parameter
Symbol
Specification
Unit
Power Supply Voltage
VDD - VSS
− 0.5 ~ + 8.0
V
Input Voltage
VIN
VSS − 0.3 ~ VDD + 0.3
V
Output Voltage
VOUT
VDD − 30 ~ VDD + 0.3
V
Operating Temperature
Ta
− 40 ~ + 85
Storage Temperature
TSTG
− 55 ~ + 125



Description

IN7100 is a automotive digital clock, CMOS LSI. It drives fluorescent indicator panel directly. It can be driven by a 4.194304 MHz crystal oscillator or an external clock signal (1024 Hz). It has 4-ways display brightness control function and its display format is 12 hours.
