IN74LV244

Features: • Outputs Directly Interface to CMOS, NMOS, and TTL• Operating Voltage Range: 1.2 to 3.6 V• Low Input Current: 1.0 µA, 0.1 µ at = 25 °• Output Current: 8 mA at VCC = 3.0 V• High Noise Immunity Characteristic of CMOS DevicesPinoutSpecifications ...

product image

IN74LV244 Picture
See larger image
SeekIC No. : 004375241 Detail

IN74LV244: Features: • Outputs Directly Interface to CMOS, NMOS, and TTL• Operating Voltage Range: 1.2 to 3.6 V• Low Input Current: 1.0 µA, 0.1 µ at = 25 °• Output Current:...

IN74LV244 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IN74LV244
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 1.2 to 3.6 V
• Low Input Current: 1.0 µA, 0.1 µ at = 25 °
• Output Current: 8 mA at VCC = 3.0 V
• High Noise Immunity Characteristic of CMOS Devices


Pinout

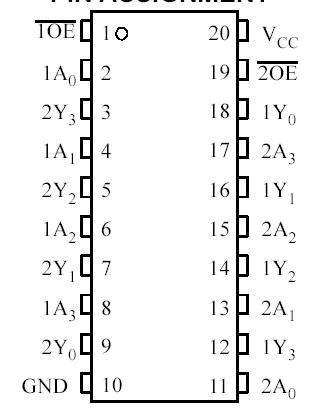

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC DC Supply Voltage (Referenced to GND) -0.5 to +5.0 V
IIK*1 DC input diode current ±20 V
IOK*2 DC output diode current ±50 mA
IO*3 DC Output source or sink current ±35 mA
ICC DC VCC current ±70 mA
IGND DC GND current ±70 mA
PD Power dissipation per package: *4
Plastic DIP
SO		 750
500		 mW
Tstg Storage Temperature -65 to +150 °C
TL Lead Temperature, 1.5 mm (Plastic DIP Package), 0.3 mm (SO
Package) from Case for 4 Seconds		 260 °C
*Maximum Ratings are those values beyond which damage to the device may occur.
  Functional operation should be restricted to the Recommended Operating Conditions.
*1 VI < -0.5 V or VI > VCC + 0.5 V.
*2 VO < -0.5 V or VO > VCC + 0.5 V.
*3 -0.5 V < VO < VCC + 0.5 V.
*4 Derating - Plastic DIP: - 12 mW/°C from 70° to 125°C
  SO Package: : - 8 mW/°C from 70° to 125°C


Description

The IN74LV244 is a low-voltage Si-gate CMOS device and is pin and function compatible with IN74HC/HCT244.

The IN74LV244 is an octal non-inverting buffer/line driver with 3-state outputs. The 3-state outputs are controlled by the output enable inputs OE 1 and OE 2 . A HIGH on nOE causes the outputs to assume a high impedance OFF-state.

The IN74LV244 is identical to the IN74LV240 but has noninverting outputs.
