Part Number: INA3010
Description: The INA3010 is intended as a general purpose (RC-5) infrared remote control system for use where a low...
- Table of contents:
INA3010
-
Suppliers
DataSheet
General Description
INA3010 General Description
The INA3010 is intended as a general purpose (RC-5) infrared remote control system for use where a low voltage supply and a large debounce time are expected. The device can generate 2048 different commands and utilizes a keyboard with a single pole switch for each key. The command are arranged so that 32 systems can be addressed, each system containing 64 different commands. The keyboard interconnection is illustrated by Fig.1.
INA3010 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
DC Supply Voltage (Referenced to GND) |
-0.5 to +8.5 |
V |
|
VIN |
DC Input Voltage (Referenced to GND)* |
-0.5 to VCC +0.5 |
V |
|
VOUT |
DC Output Voltage (Referenced to GND)* |
-0.5 to VCC +0.5 |
V |
|
IIN |
DC Input Current |
±10 |
mA |
|
IOUT |
DC Output Current |
±10 |
mA |
|
PDO PDO |
Maximum Power Dissipation OSC output other outputs |
50 100 |
mW mW |
|
PD |
Power Dissipation in Still Air |
200 |
*VCC + 0.5 must not exceeed 9.0V..
*Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the Recommended Operating Conditions . +Derating - Plastic DIP: - 10 mW/ from 65°to 85 SOIC Package: : - 7 mW/ from 65° to 85
INA3010 Features
• Low voltage requirement
• Single pin oscillator
• Biphase transmission technique
• Test mode facility
• Single pin oscillator
• Biphase transmission technique
• Test mode facility

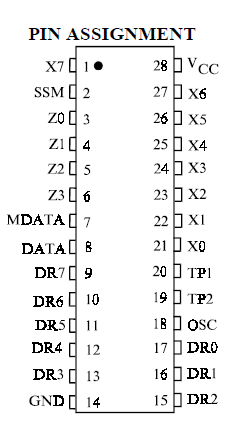

INA3010 Connection Diagram
INA3010
