Part Number: IP1060B
Description: The IP1060 is a control circuit for use in switched mode power supplies. This single monolithic chip i...
- Table of contents:
IP1060B
-
Suppliers
DataSheet
General Description
IP1060B General Description
The IP1060 is a control circuit for use in switched mode power supplies. This single monolithic chip incorporates all the control and supervisory (protection) functions required in switched mode power supplies, including an internal temperature compensated reference source, sawtooth generator, pulse width modulator, output stage and various protection circuits.
IP1060B Maximum Ratings
Supply
- Voltage Sourced ..............................................18V
- Current Sourced ...........................................30mA
Output Transistor
- Output current .............................................40mA
- Collector Voltage (Pin 15) ...............................18V
Max. Emitter Voltage (Pin 14) ................................5V
Operating Temperature (Ambient)
- IP1060B ....................................55°C to +125°C
- IP1060 .......................................25°C to + 85°C
- IP1060A ............................................0°C to 70°C
Storage Temperature Rage ............65°C to +150°C
Operating Junction Temperature Range ..........150°C
- Voltage Sourced ..............................................18V
- Current Sourced ...........................................30mA
Output Transistor
- Output current .............................................40mA
- Collector Voltage (Pin 15) ...............................18V
Max. Emitter Voltage (Pin 14) ................................5V
Operating Temperature (Ambient)
- IP1060B ....................................55°C to +125°C
- IP1060 .......................................25°C to + 85°C
- IP1060A ............................................0°C to 70°C
Storage Temperature Rage ............65°C to +150°C
Operating Junction Temperature Range ..........150°C
IP1060B Features
• Stabilised Power Supply
• Temperature Compensated Reference Source
• Sawtooth Generator
• Pulse Width Modulator
• Remote on/off Switching
• Current Limiting
• Low Supply Voltage Protection
• Loop fault Protection
• Demagnetisation/Overvoltage Protection
• Maximum Duty Cycle Clamp
• Feed Forward Control
• External Synchronisation
• Temperature Compensated Reference Source
• Sawtooth Generator
• Pulse Width Modulator
• Remote on/off Switching
• Current Limiting
• Low Supply Voltage Protection
• Loop fault Protection
• Demagnetisation/Overvoltage Protection
• Maximum Duty Cycle Clamp
• Feed Forward Control
• External Synchronisation

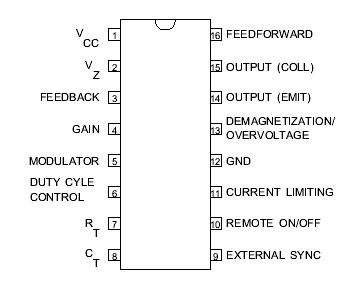

IP1060B Connection Diagram
IP1060B
PDF/DataSheet Download
- Datasheet: IP1060B
- File Size: 28059 KB
- Manufacturer: SEME-LAB [Seme LAB]
