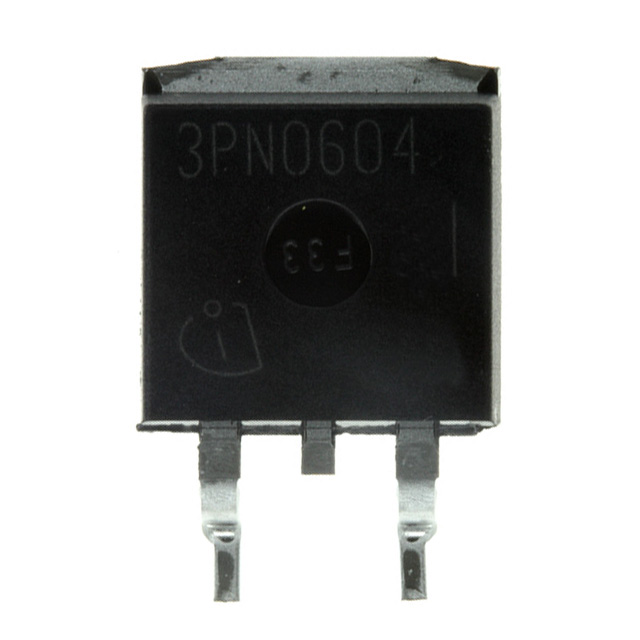

IPB100N06S3L-04

IPB Series Datasheet download

Five Points

Part Number: IPB100N06S3L-04

Category: Discrete Semiconductor Products

MFG: Infineon Technologies (VA)





Descriptions: MOSFET N-CH 55V 100A TO-263

Price Break

1
10
100
1000

Unit Price

3.31000
2.60200
2.20750
1.37970

Extended Price

3.31
26.02
220.75
1379.70

(All prices are in USD) Prices for reference only
Urgent Purchase

IPB100N06S3L-04 General Description

MOSFET N-CH 55V 100A TO-263

IPB100N06S3L-04 Parameters

Technical/Catalog InformationIPB100N06S3L-04
VendorInfineon Technologies (VA)
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)55V
Current - Continuous Drain (Id) @ 25° C100A
Rds On (Max) @ Id, Vgs3.5 mOhm @ 80A, 10V
Input Capacitance (Ciss) @ Vds 17270pF @ 25V
Power - Max214W
PackagingDigi-Reel?
Gate Charge (Qg) @ Vgs362nC @ 10V
Package / CaseD²Pak, SMD-220, TO-263 (2 leads + tab)
FET FeatureLogic Level Gate
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names IPB100N06S3L 04
IPB100N06S3L04
IPB100N06S3L 04INDKR ND
IPB100N06S3L04INDKRND
IPB100N06S3L-04INDKR
