Part Number: IR25XB..H









Description: These IRXB..H Series of Single Phase Bridges consist of four glass passivated silicon junction connect...


Urgent Purchase

IR25XB..H General Description


These IRXB..H Series of Single Phase Bridges consist of four glass passivated silicon junction connected as a Full Wave Bridge. These four junctions are encapsulated by plastic molding technique. These Bridges are mainly used in Switch Mode power supply, Induction cooker, Airconditioner, Washing Machine and Microwave oven.

IR25XB..H Features

·Diode chips are glass passivated
·Suitable for Universal hole mounting
·Easy to assemble & install on P.C.B.
·High Surge Current Capability
·High Isolation between terminals and molded case (2500 VRMS)
·High Thermal Conductivity
·Lead free terminals solderable as per MIL-STD-750, Method 2026
·High Temperature soldering guaranteed at 260°C/ 8-10secs
·UL E160375 approved

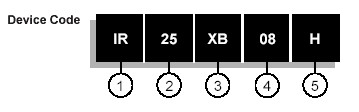

IR25XB..H Connection Diagram
