Part Number: IR3080



MFG: IR

Package Cooled: QFN

D/C: 04+

Description: The IR3080 Control IC combined with an IR XPhaseTM Phase IC provides a full featured and flexible way ...


Urgent Purchase

IR3080 General Description


The IR3080 Control IC combined with an IR XPhaseTM Phase IC provides a full featured and flexible way to implement a complete VRD 10 power solution. The "Control" IC provides overall system control and interfaces with any number of "Phase ICs" which each drive and monitor a single phase of a multiphase converter. The XPhaseTM architecture results in a power supply that is smaller, less expensive, and easier to design while providing higher efficiency than conventional approaches.

The IR3080 is intended for desktop applications and includes the VCCVID and VRHOT functions required for proper system operation.

IR3080 Maximum Ratings

Operating Junction Temperature.............................................150
Storage Temperature Range......................................-65 to 150
ESD Rating.........................................HBM Class 1C JEDEC standard

IR3080 Features

·6 bit VR10 compatible VID with 0.5% overall system accuracy
·1 to X phases operation with matching phase ICs
·On-chip 700Ω VID Pull-up resistors with VID pull-up voltage input
·Programmable Dynamic VID Slew Rate
·No Discharge of output capacitors during Dynamic VID step-down (can be disabled)
·+/-300mV Differential Remote Sense
·Programmable 150kHz to 1MHz oscillator
·Programmable VID Offset and Load Line output impedance
·Programmable Softstart
·Programmable Hiccup Over-Current Protection with Delay to prevent false triggering
·Simplified Powergood provides indication of proper operation and avoids false triggering
·Operates from 12V input with 9.1V Under-Voltage Lockout
·6.8V/5mA Bias Regulator provides System Reference Voltage
·1.2V @ 150mA VCCVID Linear Regulator with Full Protection
·VCCVID Powergood with Programmable delay gates converter operation
·Programmable Converter Over-Temperature Detection and Output
·Small thermally enhanced 32L MLPQ package

IR3080 Connection Diagram

IR3080 Connection Diagram

IR3080 datasheet

IR3080
PDF/DataSheet Download

Find IR3080 Suppliers

  • ·IR3009
  • IRF [International Rectifier]
  • 3 PHASE OPTERON, ATHLON, OR VR10.X CONTROL IC
  • 710374 KB
  • IR3009 Datasheet Download
  • ·IR3080M
  • IRF [International Rectifier]
  • XPHASE VRD10 CONTROL IC WITH VCCVID & OVERTEMP DETECT
  • 2322001 KB
  • IR3080M Datasheet Download
  • ·IR3080MPBF
  • IRF [International Rectifier]
  • XPHASETM VRD10 CONTROL IC WITH VCCVID & OVERTEMP DETECT
  • 1942165 KB
  • IR3080MPBF Datasheet Download
  • ·IR3080MTR
  • IRF [International Rectifier]
  • XPHASE VRD10 CONTROL IC WITH VCCVID & OVERTEMP DETECT
  • 2322001 KB
  • IR3080MTR Datasheet Download
  • ·IR3081
  • IRF [International Rectifier]
  • XPHASE VR 10.0 CONTROL IC
  • 405917 KB
  • IR3081 Datasheet Download
  • ·IR3081M
  • IRF [International Rectifier]
  • XPHASE VR 10.0 CONTROL IC
  • 405917 KB
  • IR3081M Datasheet Download
  • ·IR3081MTR
  • IRF [International Rectifier]
  • XPHASE VR 10.0 CONTROL IC
  • 405917 KB
  • IR3081MTR Datasheet Download
  • ·IR3082
  • IRF [International Rectifier]
  • XPHASE AMD OPTERON/ATHLON 64 CONTROL IC
  • 455427 KB
  • IR3082 Datasheet Download

Related Part Number

IR3080 Relative Products

  • IR2E53Y6

    IR2E53Y6

    IC LED DRVR WT/RGB BCKLT 35WLCSP

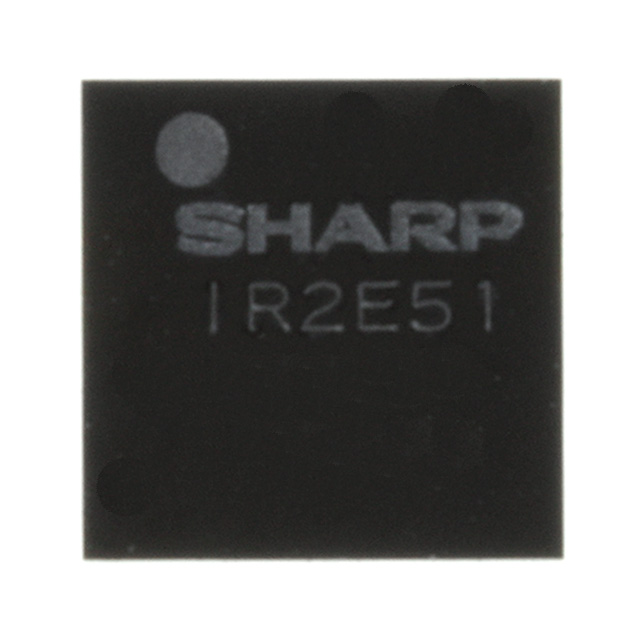

  • IR2E51Y6

    IR2E51Y6

    IC LED DRVR WT/RGB BCKLT 35WLCSP

  • IR2E51Y

    IR2E51Y

    IR2E51Y incorporates white LED driver with auto brightness control. This IC is equipped with charge pump DC/DC converter. Input voltage is boosted into CPO by a charge pump circuit.This IC maintains high efficiency since the charge pump circuit automatically...

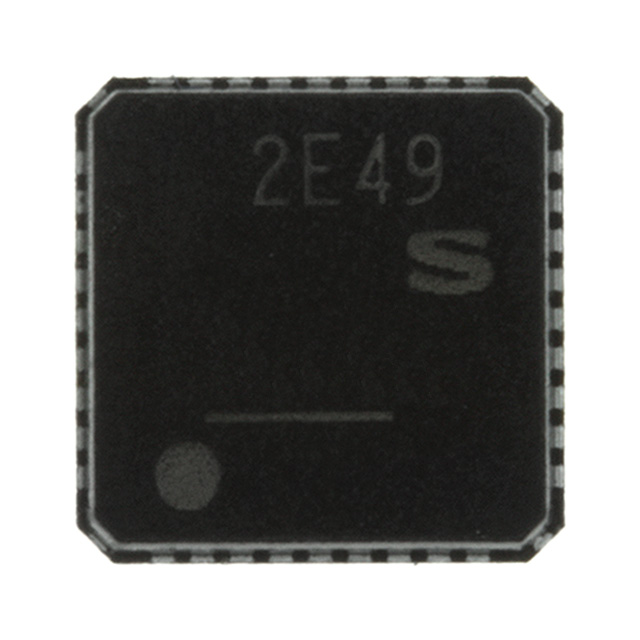

  • IR2E49U6

    IR2E49U6

    IC LED DRVR WHITE BCKLGT 36-VQFN

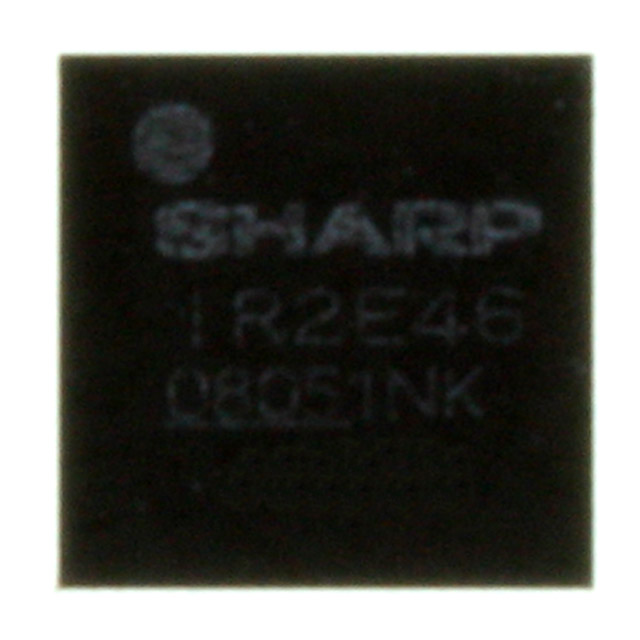

  • IR2E46Y6
