IRAMX20UP60A, US $ 12.75-15.61 , International Rectifier, IRAMX20UP60A DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 00533582 Detail

IRAMX20UP60A: Motor / Motion / Ignition Controllers & Drivers

IRAMX20UP60A Data Sheet

US $ 12.75~15.61 / Piece | Get Latest Price

Part Number:: IRAMX20UP60A
Mfg:: International Rectifier
Supply Ability:: 5000

Price Break

Qty
0~53
53~100
100~250
250~500

Unit Price
$15.61
$13.67
$13.19
$12.75

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Type :	Motor Driver	Operating Supply Voltage :	5 V
Supply Current :	165 uA	Mounting Style :	Through Hole
Package / Case :	SIP-2	Packaging :	Tube

Description

Product :
Packaging : Tube
Mounting Style : Through Hole
Operating Supply Voltage : 5 V
Type : Motor Driver
Supply Current : 165 uA
Package / Case : SIP-2

Features:

·Integrated Gate Drivers
·Temperature Monitor
·Overcurrent shutdown
·Fully Isolated Package
·Low VCE (on) Non Punch Through IGBT Technology.
·Undervoltage lockout for all channels
·Matched propagation delay for all channels
·5V Schmitt-triggered input logic
·Cross-conduction prevention logic
·Lower di/dt gate driver for better noise immunity
·Motor Power range 0.75~1.5kW / 85~253 Vac
·Isolation 2000V_RMS min

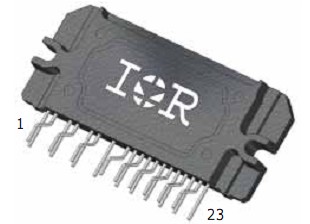

Pinout

Connection Diagram

Specifications

Parameter	Description	Max. Value	Units
V_CES/ V_RRM	IGBT/Diode Blocking Voltage	600	V
V+	Positive Bus Input Voltage	450	V
I_O @ T_C =25	RMS Phase Current (Note 1)	20	A
I_O @ T_C =100	RMS Phase Current (Note 1)	10
I_O	Pulsed RMS Phase Current (Note 2)	30
F_PWM	PWM Carrier Frequency	20	kHz
P_d	Power dissipation per IGBT @ T_C=25	38	W
V_ISO	Isolation Voltage (1min)	2000	VRMS
T_J(IGBT& Diodes)	Operating Junction temperature Range	-40 to +150
T_J(Drver IC)	Operating Junction temperature Range	-40 to +150
T	Mounting torque Range (M3 screw)	0.5 to 0.6	Nm

Description

International Rectifier's IRAMX20UP60A is a 20A, 600V Integrated Power Hybrid IC for Appliance Motor Drives applications such air conditioning systems and compressor drivers as well as in light industrial applica-tion. IR's technology offers an extremely compact, high performance AC motor-driver in a single isolated package to simplify design.

This advanced HIC IRAMX20UP60A is a combination of IR's low V Punch-Through IGBT technology and the industry CE(on) benchmark 3 phase high voltage, high speed driver in a fully isolated thermally enhanced package.

A built-in temperature monitor of IRAMX20UP60A and input logic protection function, along with the short-circuit rated IGBTs and integrated under-voltage lockout function, deliver high level of protection and fail-safe operation. Using a Single in line package (SiP2) with heatspreader for the power die along with full transfer mold structure minimizes PCB IRAMX20UP60A space and resolves isolation problems to heatsink.

Parameters:

Technical/Catalog Information	IRAMX20UP60A
Vendor	International Rectifier
Category	Motors, Solenoids, Driver Boards/Modules
Motor Type	3-Phase High Voltage, High Speed Driver
Transistor Type	IGBT
Number of Motors	1
Voltage - Output	600V
Current - Output	20A
Voltage - Logic Supply	12 V ~ 20 V
Package / Case	SIP2
Termination Style	PC Pin
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IRAMX20UP60A IRAMX20UP60A
