IRLI3705NPbF

IRL Series Datasheet download

Five Points

Part Number: IRLI3705NPbF

Category: Discrete Semiconductor Products

MFG: International Rectifier





Descriptions: MOSFET N-CH 55V 52A TO220FP

Price Break

1
10
100
250
500
1000
2500
10000

Unit Price

2.01000
1.30800
1.00110
.94552
.88588
.84766
.81465
.74865

Extended Price

2.01
13.08
100.11
236.38
442.94
847.66
2036.62
7486.50

(All prices are in USD) Prices for reference only
Urgent Purchase

IRLI3705NPbF General Description

MOSFET N-CH 55V 52A TO220FP

The IRLI3705NPbF is designed as the third generation HEXFET from international rectifier utilize advanced [rocessing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

The IRLI3705NPbF has six features. (1)Logic level gate drive. (2)Advanced process technology. (3)Isolated package. (4)High voltage isolation is 2.5KVrms. (5)Its sink to lead creepage dist is 4.8mm. (6)Fully avalanche rated. That are all the main features.

Some absolute maximum ratings of IRLI3705NPbF have been concluded into several points as follow. (1)Its continuous drain current at 10V would be 52A at 25°C and would be 37A at 100°C. (2)Its pulsed drain current would be 310A. (3)Its power dissipation would be 58W at 25°C. (4)Its linear derating factor would be 0.39W/°C. (5)Its gate to source voltage would be +/-16V. (6)Its repetitive avalanche energy would be 5.8mJ. (7)Its peak diode recovery dv/dt would be 5.0V/ns. (8)Its operating junction and storage temperature range would be from -55°C to +175°C. (9)Its soldering temperature for 10 seconds would be 300°C 1.6mm from case. It should be noted that stresses above those listed in absolute maximum ratings may cause permanent damage to device.

Also some electrical characteristics of IRLI3705NPbF are concluded as follow. (1)Its drain to source breakdown voltage would be min 55V. (2)Its breakdown voltage temperature coefficient would be typ 0.056V/°C. (3)Its static drain to source on-resistance would be max 0.010 ohms at Vgs=10V, Id=28A and would be max 0.012 ohms at Vgs=5.0V, Id=28A and would be max 0.018 ohms with condition of Vgs=4.0V, Id=24A. (4)Its gate threshold voltage would be min 1.0V and max 2.0V. And so on. If you have any question or suggestion or want to know more information please contact us for IRLI3705NPbF details. Thank you!

IRLI3705NPbF Parameters

Technical/Catalog InformationIRLI3705NPBF
VendorInternational Rectifier
CategoryDiscrete Semiconductor Products
Mounting TypeThrough Hole
FET PolarityN-Channel
Drain to Source Voltage (Vdss)55V
Current - Continuous Drain (Id) @ 25° C52A
Rds On (Max) @ Id, Vgs10 mOhm @ 28A, 10V
Input Capacitance (Ciss) @ Vds 3600pF @ 25V
Power - Max58W
PackagingTube
Gate Charge (Qg) @ Vgs98nC @ 5V
Package / CaseTO-220-3 Fullpak (Straight Leads)
FET FeatureLogic Level Gate
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names IRLI3705NPBF
IRLI3705NPBF

IRLI3705NPbF datasheet

IRL1004
PDF/DataSheet Download

Find IRLI3705NPbF Suppliers

  • ·IRL1004L
  •
  • HEXFET? Power MOSFET
  • 125957 KB
  • IRL1004L Datasheet Download
  • ·IRL1004S
  •
  • HEXFET? Power MOSFET
  • 125957 KB
  • IRL1004S Datasheet Download
  • ·IRL1104
  • IRF [International Rectifier]
  • HEXFET Power MOSFET
  • 92621 KB
  • IRL1104 Datasheet Download
  • ·IRL1104L
  •
  • HEXFET? Power MOSFET
  • 197139 KB
  • IRL1104L Datasheet Download
  • ·IRL1104S
  •
  • HEXFET? Power MOSFET
  • 197139 KB
  • IRL1104S Datasheet Download
  • ·IRL1404
  • IRF [International Rectifier]
  • HEXFET Power MOSFET
  • 127861 KB
  • IRL1404 Datasheet Download
  • ·IRL1404L
  •
  • HEXFET? Power MOSFET
  • 136988 KB
  • IRL1404L Datasheet Download
  • ·IRL1404S
  •
  • HEXFET? Power MOSFET
  • 136988 KB
  • IRL1404S Datasheet Download

IRLI3705NPbF Relative Products

  • IRLI3705N

    IRLI3705N

    Fifth Generation HEXFETs from International Rectifier IRLI3705N utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Powe...

  • IRLI3615PbF

    IRLI3615PbF

    The IRLI3615PbF is designed as HEXFET power MOSFET.It would provide the designer with an extremely efficient and reliable device for use in a wide variety of applications.The IRLI3615PbFhas seven features.The first one is that it would use avvanced process ...

  • IRLI3615

    IRLI3615

    Fifth Generation HEXFETs from International Rectifier IRLI3615 utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device IRLI3615 design that HEX...

  • IRLI3303

    IRLI3303

    Fifth Generation HEXFETs from International Rectifier IRLI3303 utilize advanced processing techniques to achieve the lowest possible on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device IRLI3303 design th...

  • IRLI3103

    IRLI3103

    Fifth Generation HEXFETs from International Rectifier IRLI3103 utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized IRLI3103 device design that HEX...

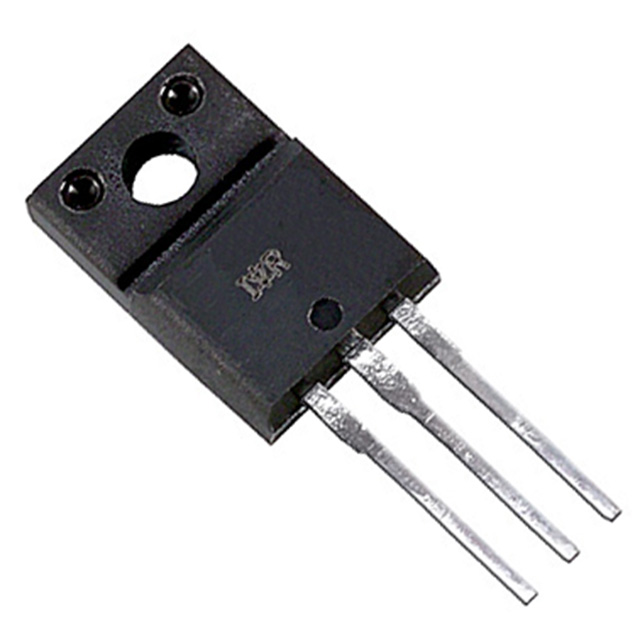

  • IRLI2910PBF
