Part Number: IRLU3114ZPbF
Description: Specifically designed for Automotive applications, this HEXFET® Power MOSFET utilizes the latest p...
- Table of contents:
IRLU3114ZPbF
-
Suppliers
DataSheet
General Description
IRLU3114ZPbF General Description
Specifically designed for Automotive applications, this HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this design are a 175 junction operating temperature, fast switching speed and improved repetitive avalanche rating . These features combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications.
IRLU3114ZPbF Maximum Ratings
| Parameter |
Max. |
Units | |
| ID @ TC = 25 | Continuous Drain Current, VGS @ 10V (Silicon Limited) |
130 |
A |
| ID @ TC =100 | Continuous Drain Current, VGS @ 10V (Package Limited) |
89 | |
| ID @ TC = 25 | Continuous Drain Current,VGS @ 10V (Package Limited) |
42 | |
| IDM | Pulsed Drain Current |
500 | |
| PD @TC= 25 | Power Dissipation |
140 |
W |
| Linear Derating Factor |
0.95 |
W/ | |
| VGS | Gate-to-Source Voltage |
±16 |
V |
| EAS (Thermally limited) | Single Pulse Avalanche Energy |
130 |
mJ |
| EAS (Tested ) | Single Pulse Avalanche Energy Tested Value |
260 | |
| IAR | Avalanche Current |
See Fig.12a, 12b, 15, 16 |
A |
| EAR | Repetitive Avalanche Energy |
mJ | |
| TJ TSTG |
Operating Junction and Storage Temperature Range |
-55 to + 175 |
|
| Reflow Soldering Temperature, for 10 seconds |
300 | ||
| Mounting Torque, 6-32 or M3 screw |
10 lbf`in (1.1N`m) |
IRLU3114ZPbF Features
Advanced Process Technology
Ultra Low On-Resistance
175 Operating Temperature
Fast Switching
Repetitive Avalanche Allowed up to Tjmax
Logic Level
Ultra Low On-Resistance
175 Operating Temperature
Fast Switching
Repetitive Avalanche Allowed up to Tjmax
Logic Level
IRL1004
PDF/DataSheet Download
- Datasheet: IRL1004
- File Size: 91524 KB
- Manufacturer: IRF [International Rectifier]
- Click here to Download
- ·IRL1004L
- HEXFET? Power MOSFET
- 125957 KB
- ·IRL1004S
- HEXFET? Power MOSFET
- 125957 KB
- ·IRL1104
- IRF [International Rectifier]
- HEXFET Power MOSFET
- 92621 KB
- ·IRL1104L
- HEXFET? Power MOSFET
- 197139 KB
- ·IRL1104S
- HEXFET? Power MOSFET
- 197139 KB
- ·IRL1404
- IRF [International Rectifier]
- HEXFET Power MOSFET
- 127861 KB
- ·IRL1404L
- HEXFET? Power MOSFET
- 136988 KB
- ·IRL1404S
- HEXFET? Power MOSFET
- 136988 KB
IRLU3114ZPbF Relative Products

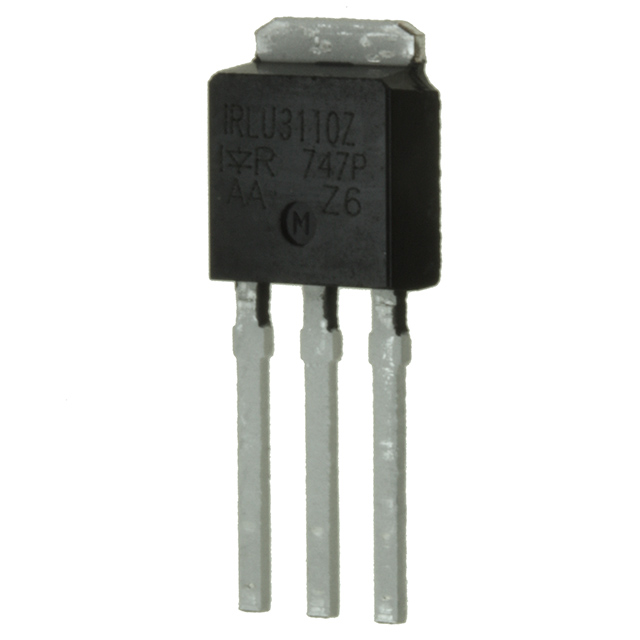

IRLU3110ZPbF
