Part Number: IRLU9343-701









Description: This Digital Audio HEXFET® is specifically designed for Class-D audio amplifier applications. This...


Urgent Purchase

IRLU9343-701 General Description


This Digital Audio HEXFET® is specifically designed for Class-D audio amplifier applications. This MosFET utilizes the latest processing techniques to achieve low on-resistance per silicon area. Furthermore, Gate charge, body-diode reverse recovery and internal Gate resistance are optimized to improve key Class-D audio amplifier performance factors such as efficiency, THD and EMI. Additional features of this MosFET are 175°C operating junction temperature and repetitive avalanche capability.

These features combine to make this MosFET a highly efficient, robust and reliable device for Class-D audio amplifier
applications.

IRLU9343-701 Maximum Ratings

Parameter
Max
Units
VDS Drain-to-Source Voltage
55
V
VGS Gate-to-Source Voltage
±20
ID @ TC = 25°C Continuous Drain Current, VGS @ 10V
-20
A
ID @ TC = 100°C Continuous Drain Current, VGS @ 10V
-14
IDM Pulsed Drain Current
-60
PD @TC = 25°C Power Dissipation
79
W
PD @TC = 100°C Power Dissipation
39
Linear Derating Factor
0.53
W/°C
TJ
TSTG		 Operating Junction and
Storage Temperature Range
-40 to + 175
°C
Clamping Pressure
N

IRLU9343-701 Features

Advanced Process Technology
Key Parameters Optimized for Class-D Audio Amplifier Applications
Low RDSON for Improved Efficiency
Low Qg and Qsw for Better THD and Improved Efficiency
Low Qrr for Better THD and Lower EMI
175°C Operating Junction Temperature for Ruggedness
Repetitive Avalanche Capability for Robustness and Reliability
 Multiple Package Options

IRLU9343-701 datasheet

IRLU9343-701
PDF/DataSheet Download

  • Datasheet: IRLU9343-701
  • File Size: 251855 KB
  • Manufacturer: IRF [International Rectifier]
  • Click here to Download

Find IRLU9343-701 Suppliers

  • ·IRL1004
  • IRF [International Rectifier]
  • HEXFET Power MOSFET
  • 91524 KB
  • IRL1004 Datasheet Download
  • ·IRL1004L
  •
  • HEXFET? Power MOSFET
  • 125957 KB
  • IRL1004L Datasheet Download
  • ·IRL1004S
  •
  • HEXFET? Power MOSFET
  • 125957 KB
  • IRL1004S Datasheet Download
  • ·IRL1104
  • IRF [International Rectifier]
  • HEXFET Power MOSFET
  • 92621 KB
  • IRL1104 Datasheet Download
  • ·IRL1104L
  •
  • HEXFET? Power MOSFET
  • 197139 KB
  • IRL1104L Datasheet Download
  • ·IRL1104S
  •
  • HEXFET? Power MOSFET
  • 197139 KB
  • IRL1104S Datasheet Download
  • ·IRL1404
  • IRF [International Rectifier]
  • HEXFET Power MOSFET
  • 127861 KB
  • IRL1404 Datasheet Download
  • ·IRL1404L
  •
  • HEXFET? Power MOSFET
  • 136988 KB
  • IRL1404L Datasheet Download

Related Part Number

IRLU9343-701 Relative Products

  • IRLU9343

    IRLU9343

    This Digital Audio HEXFET® IRLU9343is specifically designed for Class-D audio amplifier applications. This MosFET IRLU9343 utilizes the latest processing techniques to achieve low on-resistance per silicon area. Furthermore, Gate charge, body-diode rever...

  • IRLU8743PbF

    IRLU8743PbF

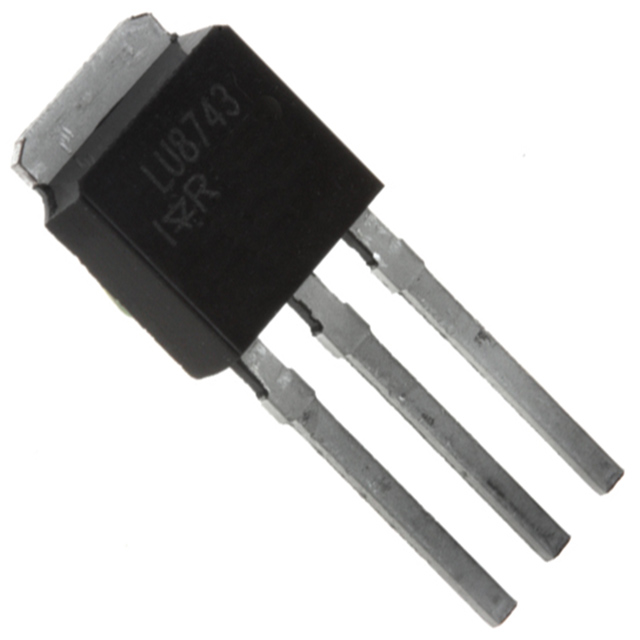

    MOSFET N-CH 30V 160A I-PAK
