IRM7001

Features: • Compliant with IrDA 1.0 Physical Layer Specifications• Interfaces with IrDA 1.0 Compliant IR Transceivers• Used in conjunction with Standard 16550 UART• Transmits/Receives either 1.6 s or 3/16 Pulse Mode• Internal or External Clock Mode• Programmabl...

product image

IRM7001 Picture
See larger image
SeekIC No. : 004378657 Detail

IRM7001: Features: • Compliant with IrDA 1.0 Physical Layer Specifications• Interfaces with IrDA 1.0 Compliant IR Transceivers• Used in conjunction with Standard 16550 UART• Transmits...

IRM7001 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IRM7001
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Compliant with IrDA 1.0 Physical Layer Specifications
• Interfaces with IrDA 1.0 Compliant IR Transceivers
• Used in conjunction with Standard 16550 UART
• Transmits/Receives either 1.6 s or 3/16 Pulse Mode
• Internal or External Clock Mode
• Programmable Baud Rate
• 2.75.5 V Operation
• 16 Pin SOIC Package


Application

• Interfaces with IR Transceivers in:
- Computer Applications:
PDAs
Dongle or other RS232 Adapter
- Telecom Application:
Modems
Fax Machines
Pagers
- Handheld Data Collection:
Industrial
Medical
Transportation


Pinout

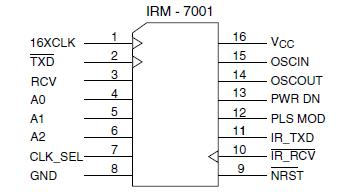

Connection Diagram


Specifications

Parameter
Symbol
Min.
Max.
Unit
Power Supply Voltage
VCC
0.5
+7.0
V
Input/Output Voltage
VI/VO
0.5
VCC+0.5
V
Power Dissipation
Pmax
0.46
W
Output Current
IO
-100
100
mA
Operating Temperature
TA
40
+85
°C
Storage Temperature
TS
65
+150
°C



Description

The IRM7001 SIR-Encoder/Decoder is a CMOS modulator/ demodulator chip that is used to both encode and decode information as per the IrDA® SIR (Serial InfraRed) signal modulation and demodulation scheme. This chip is designed to work with Infineon IrDA compatible transceivers and all other IrDA compatible transceivers. The chip contains a clock divider circuit used to generate the 16X clock internally. This makes it very suitable for microcontroller-based embedded system design.
